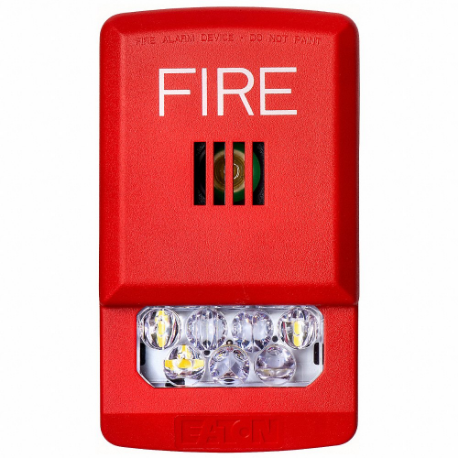

EATON ELHSR Eluxa Horn Strobe, 24 V, 86 dBA Decibels, Indoor, Wall, 4.79 Inch Ht, 2.76 Inch Wd, Clear
Item: CP4AQMModel: ELHSRCross Ref: 797FF9
7 In Stock
Ships within 2 days via
10.00% off
€113.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Horn Strobe |
| Alarm Volume @ 10 Ft - Maximum | 86 dBA |
| Amps Drawn | 0.022/0.03/0.06/0.086/0.125/0.185A |
| Audible Alarm Type | Horn |
| Color | Red |
| Control Protocol | Direct Wire |
| Depth | 1.57" |
| Features | Continuous T3 And T3/T4, Energy Efficient, Fire And Co Signaling In 1 Device, Low-Profile Design |
| For Location | Indoor |
| Height | 4.79" |
| Housing Color | Red |
| Housing Material | Plastic |
| Includes | Mounting Plate |
| Indoor/outdoor | Indoor |
| Lamp Type | LED |
| Legend | Fire |
| Lens Color | Clear |
| Lens Material | Lexan |
| Light Intensity | 15 CD, 30 CD, 75 CD, 110 CD, 135 CD, 185 CD |
| Light Operating Mode | Strobe |
| Light Output | 185 cd |
| Mounting | Wall |
| Mounting Location | Wall Mount |
| Mounting Style | Surface Mount |
| Noise Level | 86 dBA |
| Number Of Sound Patterns | 2 |
| Operating Current | 0.022A @ DC, 0.03A @ DC, 0.06A @ DC, 0.086A @ DC, 0.125A @ DC, 0.185A @ DC |
| Operating Temp. Range | +32°F to +122°F |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 32°F |
| Operating Voltage | 24V |
| Overall Depth | 1 9/16" |
| Overall Height | 1 9/16" |
| Overall Width | 2 3/4" |
| Power Source | Wire |
| Product Type | Horn And Strobe |
| Sound Continuity | Continuous |
| Sound Pattern | Continuous, Pulse |
| Sound Style | Horn |
| Visual Indicator Type | Strobe |
| Voltage | 24V |
| Wattage | 5 W |
| Width | 2 19/25" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 12.17 |
| Ship length (cm) | 3.99 |
| Ship width (cm) | 7.01 |
| Country of Origin | RO |
Product Variants
| Product | Model | Housing Color | Voltage | Depth | Diameter | Color | Audible Alarm Type | Sound Pattern | Visual Indicator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ELHSWC | White | 24V | - | 6.23" | White | Horn | Continuous, Pulse | Strobe | €130.49 | |
 |
ELHSRC | Red | - | - | - | - | - | - | - | €130.49 | |
 |
ELHSW-N | White | 24V | 4 3/4" | - | White | Horn | Continuous, Pulse | Strobe | €151.83 | |
 |
ELHSR-N | Red | - | - | - | - | - | - | - | €141.41 | |
 |
ELHSW-A | White | - | - | - | - | - | - | - | €141.41 | |
 |
ELHSW-AL | White | - | 4.79" | - | White | Horn | Continuous, Pulse | Strobe | €141.41 | |
 |
ELHSR-A | Red | - | - | - | - | - | - | - | €141.41 |
