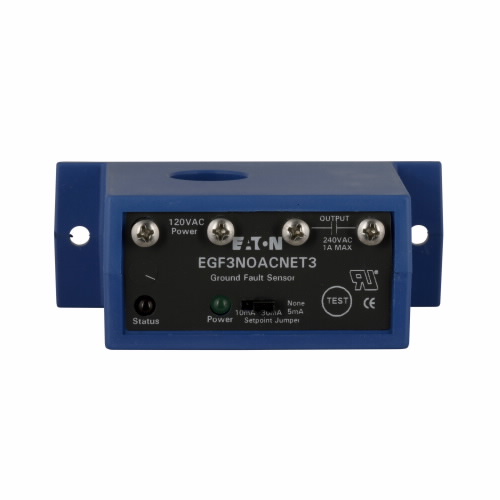

EATON EGF3NOACNET3 Ground Fault Sensor, 1A Max Ac, 1A At 240VAC, 120 VAC, Tri-Set Adjustable, 5, 10 Or 30 Ma
Get it by Friday, Aug 28
€693.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ground Fault Sensor |
| Connection | Screw Terminal |
| Contact Configuration | Isolated Solid State Relay |
| Contact Rating | 1A at 240V AC |
| Enclosure Material | Plastic |
| Enclosure Properties | UL94 V0 Flammability Rated |
| Height | 3 22/25" |
| Input Voltage | 120V AC |
| Led Indicator | Power On, Green LED, Contact Status, Red LED |
| Length | 1 1/2" |
| Max. Amps | 1A |
| Operating Temp. | -4°F to +122°F |
| Product Name | Eaton EGF Series CurrentWatch Ground Fault Sensor |
| Switch Type | Current Switch |
| Width | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 9.86 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 6.35 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Contact Rating | Output | Enclosure Material | Connection | Operating Temp. | Enclosure Properties | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EGF1NCLA050 | 3 22/25" | 120V AC | 1A at 240V AC | - | Plastic | Screw Terminal | -4°F to +122°F | UL94 V0 Flammability Rated | €1,569.31 | |
 |
EGF1NCACDE050 | 3 22/25" | 120V AC | 1A at 240V AC | - | Plastic | Screw Terminal | -4°F to +122°F | UL94 V0 Flammability Rated | €1,016.78 | |
|
EGF1NCACNE100 | 3 22/25" | 120V AC | 1A at 240V AC | - | Plastic | Screw Terminal | -4°F to +122°F | UL94 V0 Flammability Rated | €1,091.97 | |
 |
EGF1NCDCNE100 | 2 1/2" | 120V | 0.15A at 30V DC | Solid-State | Plastic | Screw Terminal | -4°F to +122°F | UL94 V0 Flammability Rated | €582.97 | |
|
EGF1NCACDE100 | 3 22/25" | 120V AC | 1A at 240V AC | - | Plastic | Screw Terminal | -4°F to +122°F | UL94 V0 Flammability Rated | €542.81 | |
|
EGF1NCDCDE050 | 3 22/25" | 120V AC | 0.15A at 30V DC | - | Plastic | Screw Terminal | -4°F to +122°F | UL94 V0 Flammability Rated | €1,016.78 | |
|
EGF1NCDCNE050 | 3 22/25" | 120V AC | 0.15A at 30V DC | - | Plastic | Screw Terminal | -4°F to +122°F | UL94 V0 Flammability Rated | €582.97 |
