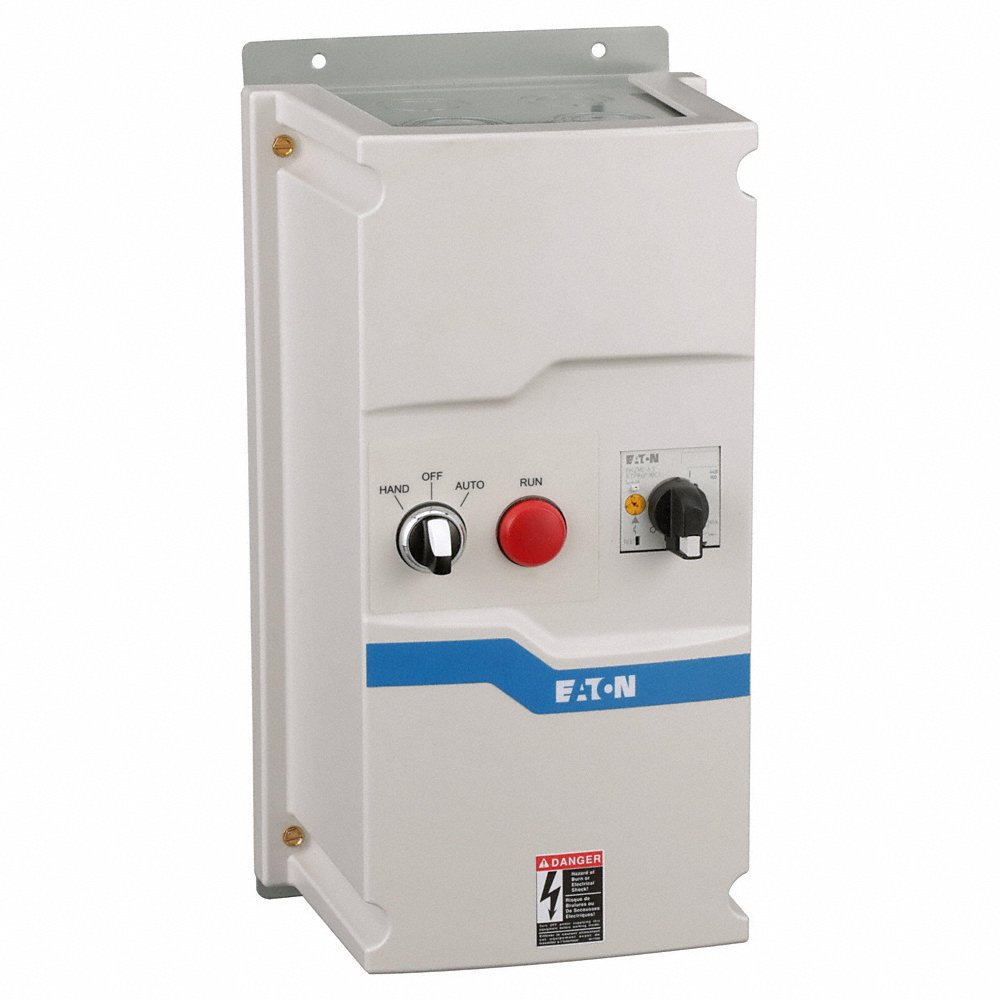

EATON ECX77H1CJD-N Combination Motor Starter, Circuit Breaker, 32 A, 480V AC Coil, 16-25A Overload Range
Get it by Friday, Aug 21
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€2,007.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Auxiliary Contact Form | 1NO |
| Auxiliary Contact Module Capacity | 4 |
| Control Transformer Voltage | 480V AC Primary, 120V AC Secondary |
| Enclosure | Type 1 |
| Enclosure Rating | Type 1 (Plastic) |
| For Fuse Class | Not Applicable |
| Hp @ 3 Phase-480v | 10 hp |
| Hp @ 3 Phase-600v Ac | 15 hp |
| Includes | I/O Terminal Blocks |
| Max. Overload Relay Amps Setting | 25A |
| Min. Overload Relay Amps Setting | 16A |
| Mmp Overload Rating | 16-25A (Frame D) |
| Mounting Hole Dia. | 0.27" |
| Mounting Hole Distance Width | 5 1/4" |
| Mounting Hole Distance-height | 15 2/5" |
| Mounting Style | Wall |
| Nema Enclosure Material | Plastic |
| Nema Enclosure Rating | NEMA 1 |
| No. Of Auxillary Contacts | 0 |
| Nominal Coil (secondary) Voltage | 120V AC |
| Operator | Selector Switch |
| Overall Depth | 8.22" |
| Overall Height | 16.23" |
| Overall Width | 8 2/5" |
| Overload Protection Type | Thermal |
| Series | XT Series |
| Short Circuit Protection | Circuit Breaker |
| Starter Style | IEC |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| Country of Origin | MX |
