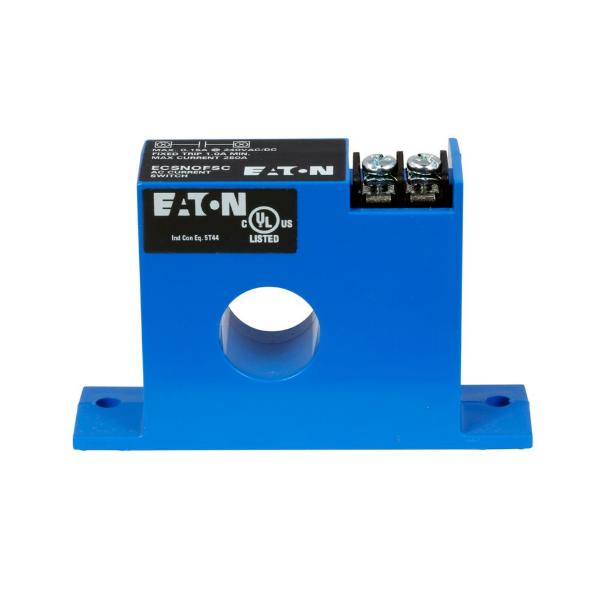

EATON ECSNOFSC Current Switch, 120 Ms Response, 1No Output, 240 VAC/VDC
Item: BJ3VVGModel: ECSNOFSCCross Ref: 39F065
7 In Stock
Ships within 2 days via
5.00% off
€189.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Switch |
| Adjustment Method | Switch |
| Amps | 150A |
| Body Depth | 3.5" |
| Body Height | 2.18" |
| Body Width | 0.93" |
| Connection | Screw Terminal |
| Contact Configuration | SSR |
| Contact Form | SPST, NO |
| Contact Rating | 0.15A at 240V AC/DC |
| Contact Rating (ac) | 0.15A @ 240V |
| Contact Rating (dc) | 0.15A @ 240V |
| Core Type | Solid |
| Dc Contact Rating | 0.15A @ 240V |
| Electrical Connection Type | Screw |
| Enclosure Material | Plastic |
| Enclosure Type | Solid Core Housing |
| For Use With | Sensors |
| Frequency | 100 Hz |
| Housing Material | Plastic |
| Led Indicator | LED Indicator |
| Length | 3 1/2" |
| Max. Ac Amps | 150A |
| Monitored Parameters | Overcurrent, Undercurrent |
| No. Of Pins/terminals | 2 |
| Operating Temp. | -58°F to +122°F |
| Overall Depth | 2.18" |
| Product Height | 2.18" |
| Product Name | Eaton ECS Series CurrentWatch AC Current Switch |
| Product Width | 0.93" |
| Relay Mounting Style | Surface |
| Sensing Hole Dia. | 0.74" |
| Standards | Rohs Compliant, Ul Listed |
| Status Indicator | LED Indicator |
| Switch Type | Fixed 1A Setpoint |
| Trip Delay | 0.12 sec. |
| Trip Point | 1A |
| Trip Point Type | Fixed |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 5.54 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 2.36 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Contact Configuration | Contact Rating | Operating Temp. | Contact Form | Dc Contact Rating | Connection | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ECS701SC | - | Isolated Solid State Relay | 0.3A at 135V AC/DC | - | - | - | Screw Terminal | - | €466.85 | |
 |
ECS700SC | - | SSR | 0.3A at 135V AC/DC | - | - | - | Screw Terminal | - | €200.07 | |
|
ECS702SC | - | Isolated Solid State Relay | 0.3A at 135V AC/DC | - | - | - | Screw Terminal | - | €447.37 | |
 |
ECS710SP | 2.8-150A | SSR | 0.3A at 135V AC/DC | - | - | - | Screw Terminal | - | €415.74 | |
 |
ECS712SP | - | SSR | 0.3A at 135V AC/DC | - | - | - | Screw Terminal | - | €440.85 | |
 |
ECS711SP | - | Isolated Solid State Relay | 0.3A at 135V AC/DC | - | - | - | Screw Terminal | - | €603.80 | |
 |
ECSJ402SP | - | Isolated Solid State Relay | 1A at 240V AC | -58°F to +122°F | - | - | Screw Terminal | - | €330.36 |
