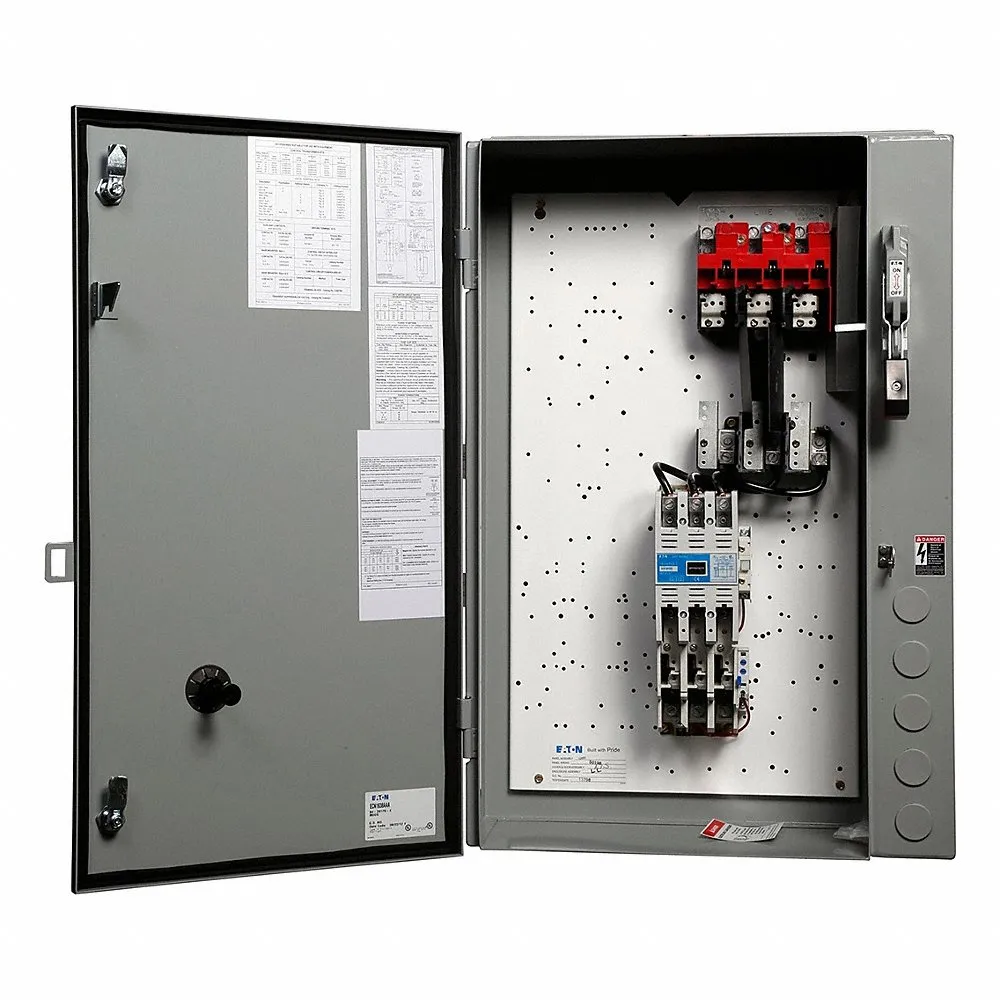

EATON ECN1632AAF-R63/E NEMA Combination Starter, Electronic, 110/120 VAC
Get it by Friday, Dec 19
10.00% off
€5,073.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | NEMA Fusible Combination Starter |
| Auxiliary Contact Form | 1NO |
| Auxiliary Contact Module Capacity | 4 |
| Control Transformer | No |
| Control Transformer Voltage | Not Applicable |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase | Not Rated |
| Horsepower @ Single Phase - 120v Ac | Not Rated |
| Horsepower @ Single Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 208v Ac | 25 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Hp @ 3 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 480v | 50 hp |
| Includes Auxiliary Contacts | Yes |
| Includes Control Transformer | No |
| Includes Pilot Light | No |
| Ip Rating | IP20 |
| Max Current (ac) | 90A |
| Max. Overload Relay Amps Setting | 100A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 20A |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Rating | NEMA 3R |
| Nema Size | 3 |
| No. Of Auxillary Contacts | 1 |
| No. Of Terminals | 3 |
| Nominal Coil (secondary) Voltage | 120V AC |
| Number Of Poles | 3 |
| Operator | No |
| Operator Type | No Operator |
| Overall Depth | 34 2/5" |
| Overall Height | 13 1/5" |
| Overall Width | 22.7" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Pilot Light | No |
| Resistance Properties | Impact Resistant, Tamper Resistant |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Short Circuit Protection | Fusible Disconnect |
| Starter Style | NEMA |
| Terminal Connection Type | Screw Terminals |
| Thermal Unit Code | Not Applicable |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10, Class 20, Class 30 |
| Ul Fuse Class | Class R |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 38.25 |
| Ship height (cm) | 33.53 |
| Ship length (cm) | 87.38 |
| Ship width (cm) | 57.66 |
| Country of Origin | US |
Product Variants
| Model | Control Transformer | Nema Size | Overall Height | Hp @ 3 Phase - 480v | Hp @ 3 Phase - 240v | Height | Short Circuit Protection | Trip Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ECN1601BAB-R63/C | No | - | 11.1" | - | - | - | Fusible Disconnect | Class 10, Class 20, Class 30 | - | RFQ
|
| ECN1611AAB-R63/D | No | 1 | 11.1" | 10 hp | 7 1/2 hp | - | Fusible Disconnect | Class 10, Class 20, Class 30 | €2,642.99 | |
| ECN1611AAB-R63/C | No | 1 | 11.1" | 10 hp | 7 1/2 hp | - | Fusible Disconnect | Class 10, Class 20, Class 30 | €2,251.72 | |
| ECN1611AAC-R63/CL30 | No | 1 | 11.1" | - | - | - | Fusible Disconnect | Class 10, Class 20, Class 30 | €2,673.31 | |
| ECN1611AAC-R63/D | No | 1 | 11.1" | 10 hp | 7 1/2 hp | 11.1" | Fusible Disconnect | Class 10, Class 20, Class 30 | €2,251.74 | |
| ECN1621AAD-R63/D | No | 2 | 11.1" | 25 hp | 15 hp | - | Fusible Disconnect | Class 10, Class 20, Class 30 | €3,839.87 | |
| ECN1621AAE-R63/D | No | 2 | 11.1" | 25 hp | 15 hp | 11.1" | Fusible Disconnect | Class 10, Class 20, Class 30 | €3,088.66 |
