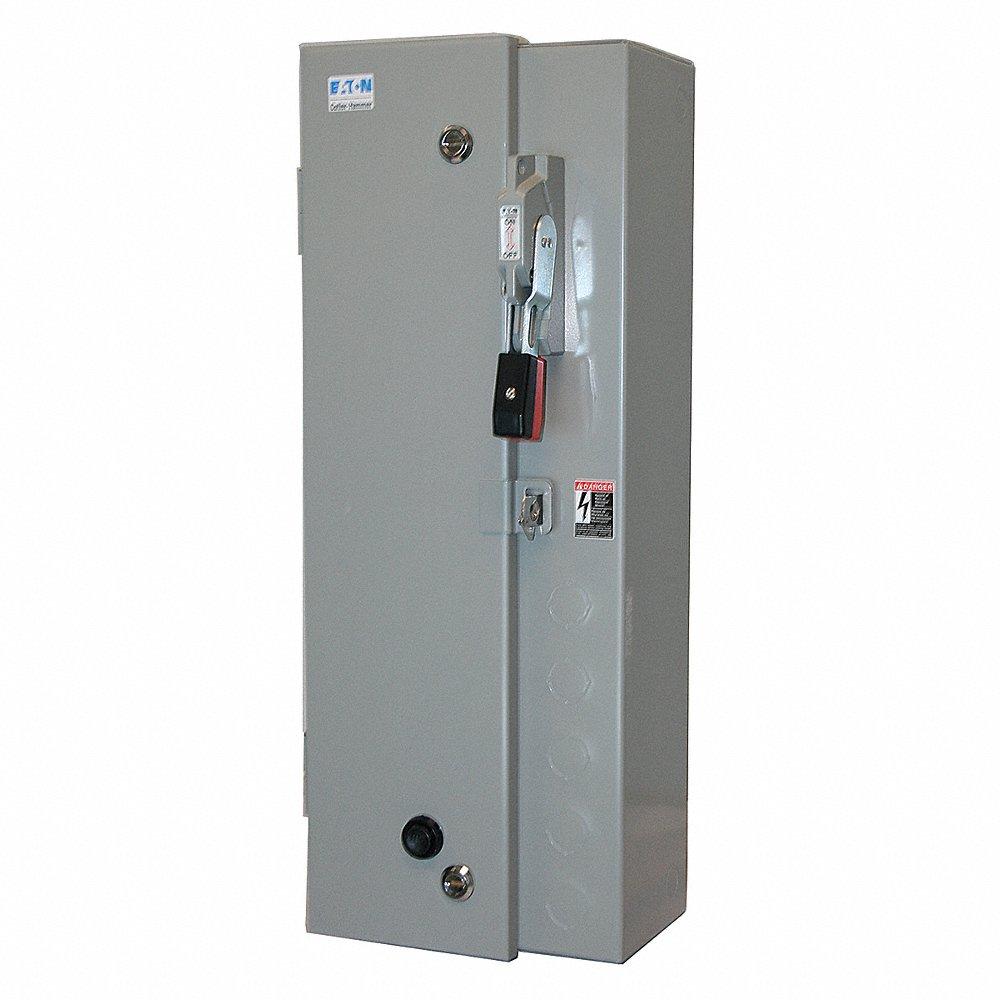

EATON ECN0538CAA-R63/E NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 3, 90 A, 480 VAC Coil
Get it by Tuesday, Dec 23
10.00% off
€3,465.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Action | Nonreversing |
| Auxiliary Contact Module Capacity | 4 |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 480V AC |
| Depth | 8.47" |
| Features | Solid State Overload Relay |
| Frequency | 50/60 Hz |
| Height | 29 3/25" |
| Horsepower @ Single Phase - 120v Ac | 7 1/2 hp |
| Horsepower @ Single Phase - 240v Ac | 15 hp |
| Horsepower @ Three Phase - 208v Ac | 25 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Hp @ 1 Phase - 120v | 7 1/2 hp |
| Hp @ 3 Phase - 208v | 25 hp |
| Hp @ 3 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 480v | 50 hp |
| Hp @ 3 Phase - 575v | 50 hp |
| Includes | Solid State Overload Relay |
| Includes Auxiliary Contacts | Yes |
| Ip Rating | IP20 |
| Max Current (ac) | 90A |
| Max. Overload Relay Amps Setting | 100A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 20A |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Surface |
| Nema Enclosure Rating | 12 |
| Nema Size | 3 |
| Nominal Coil Voltage @ 60hz | 480V AC |
| Number Of Auxillary Contacts | 2 |
| Number Of Poles | 3 |
| Overall Depth | 8.47" |
| Overall Height | 29 3/25" |
| Overall Width | 14 1/4" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Starter Style | NEMA |
| Status Indicator | LED Indicator |
| Thermal Unit Code | Not Applicable |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Width | 14 1/4" |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 73.96 |
| Ship length (cm) | 21.51 |
| Ship width (cm) | 36.2 |
| Country of Origin | US |
Product Variants
| Model | Nema Size | Coil Voltage | Height | Hp @ 3 Phase - 208v | Hp @ 3 Phase - 575v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ECN0508AAA-R63/C | - | 110/120V AC | - | - | - | - | - | - | €1,216.93 | |
| ECN0508AAA-R63/BL30 | - | 110/120V AC | - | - | - | - | - | - | €1,709.48 | |
| ECN0508CAA-R63/B | - | 480V AC | 13.31" | 3 hp | 5 hp | 3 hp | 5 hp | 6.7" | €1,709.48 | |
| ECN0508BAA-R63/B | - | 220/240V AC | 13.31" | 3 hp | 5 hp | 3 hp | 5 hp | 6.7" | €1,709.48 | |
| ECN0508BAA-R63/C | - | 220/240V AC | 13.31" | 3 hp | 5 hp | 3 hp | 5 hp | 6.7" | €1,216.93 | |
| ECN0508EAA-R63/BL30 | - | 208V AC | - | - | - | - | - | - | €1,709.48 | |
| ECN0508CAA-R63/C | - | 480V AC | 13.31" | 3 hp | 5 hp | 3 hp | 5 hp | 6.7" | €1,216.93 |
