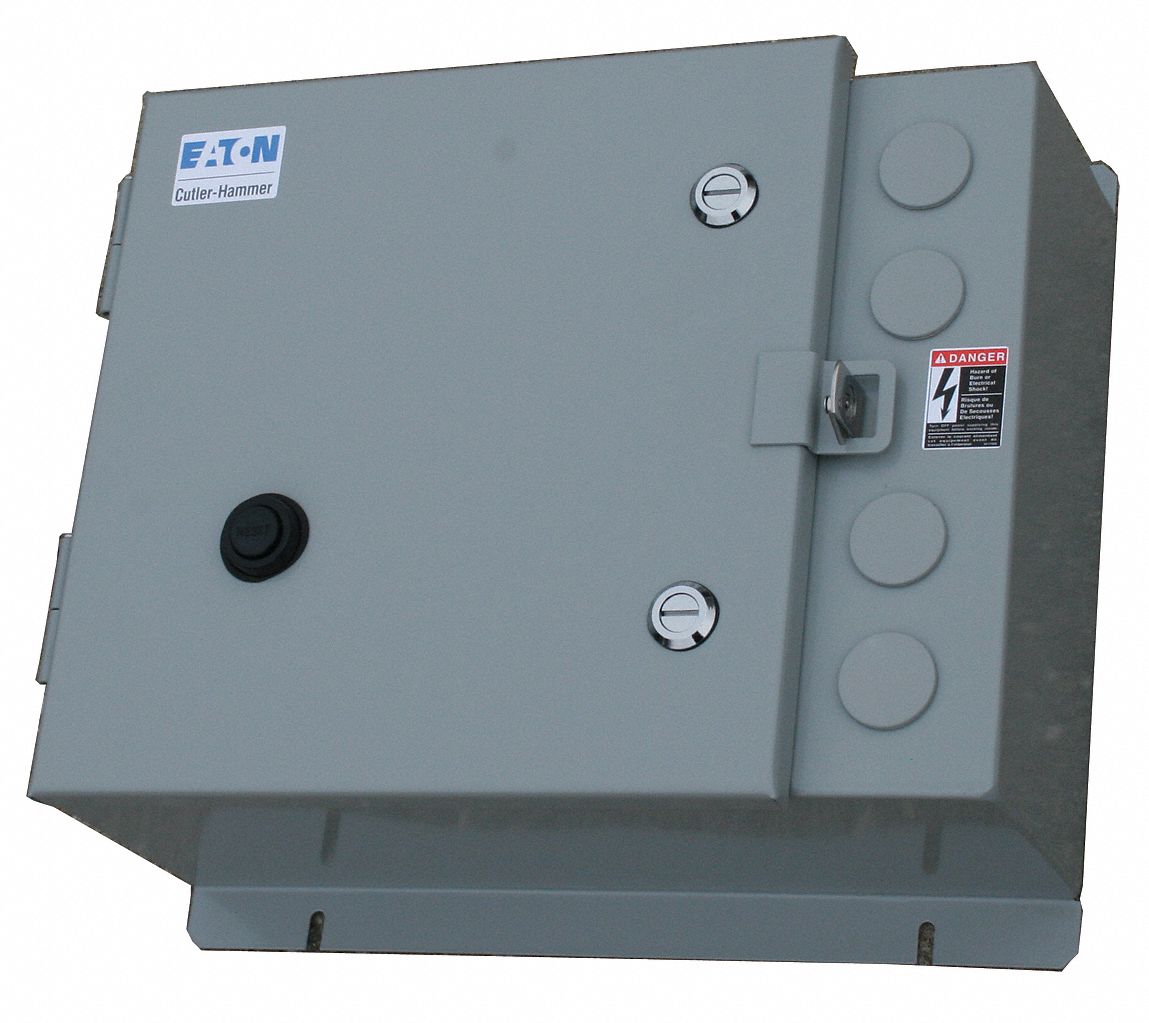

EATON ECN0532CAA-R63/E NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 3, 90 A, 480 VAC Coil
Get it by Friday, Aug 21
5.00% off
€3,327.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Action | Nonreversing |
| Auxiliary Contact Module Capacity | 4 |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 480V AC |
| Depth | 8.47" |
| Features | Solid State Overload Relay |
| Frequency | 50/60 Hz |
| Height | 29.1" |
| Hp @ 1 Ph-240v | 15 hp |
| Hp @ 1 Phase-120v | 7 1/2 hp |
| Hp @ 3 Phase-208v | 25 hp |
| Hp @ 3 Phase-240v | 30 hp |
| Hp @ 3 Phase-480v | 50 hp |
| Hp @ 3 Phase-575v | 50 hp |
| Hp @ 3 Phase-600v | 50 hp |
| Included | Solid State Overload Relay |
| Included Auxiliary Contacts | Yes |
| Max. Amps (ac) | 90A |
| Max. Overload Relay Amps Setting | 100A |
| Max. Voltage | 600V AC |
| Min. Overload Relay Amps Setting | 20A |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 3R |
| Nema Size | 3 |
| No. Of Auxillary Contacts | 2 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 480V AC |
| Overall Depth | 31" |
| Overall Height | 11" |
| Overall Width | 16" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Reversing Capability | Non Reversing |
| Series | Freedom Series |
| Starter Style | NEMA |
| Thermal Unit Code | Not Applicable |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Width | 14 1/4" |
Shipping Info:
| Ship weight (kg) | 21.53 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 78.74 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Depth | Overall Height | Coil Voltage | Overall Width | Height | Hp @ 3 Phase-600v | Hp @ 3 Phase-208v | Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

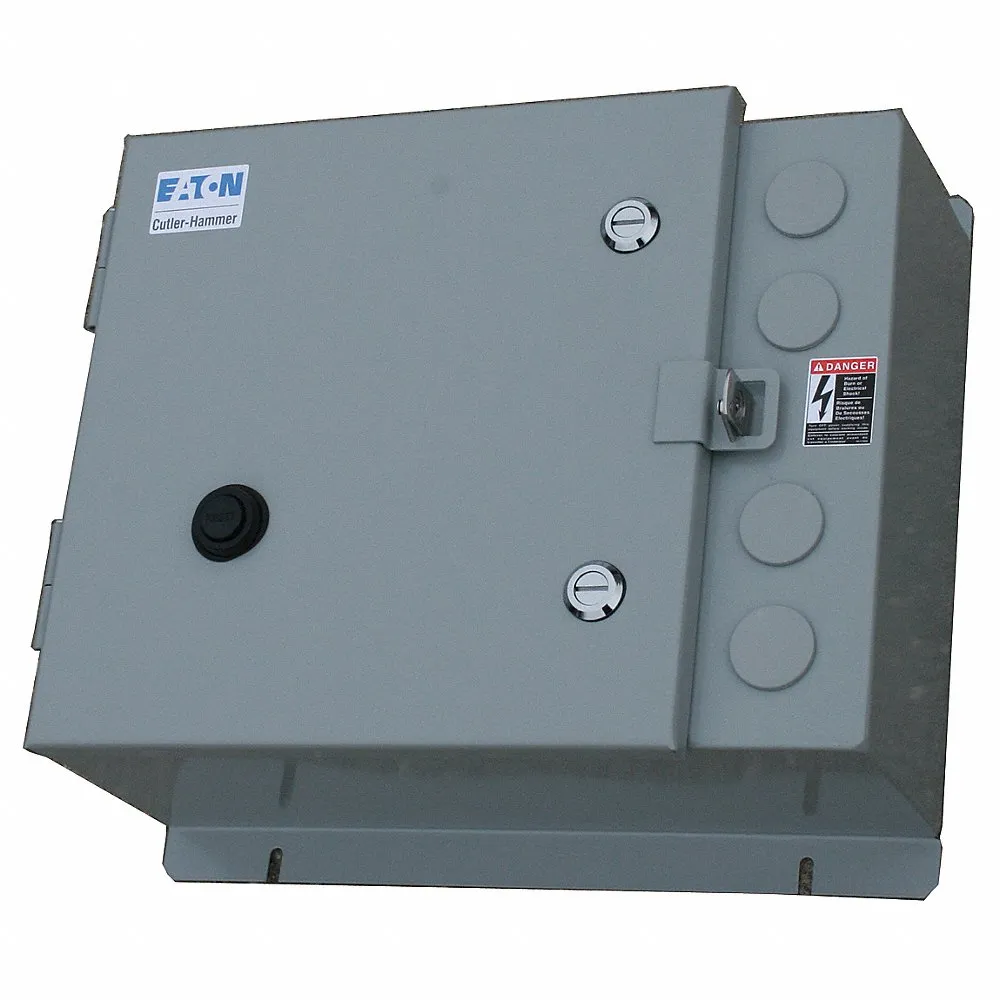

ECN0532AAA-R63/E | 31" | 11" | 110/120V AC | 16" | 29.1" | 50 hp | 25 hp | Surface | €3,502.71 | |
|
ECN0542AAA-R63/F | 8.47" | 29.1" | - | 14 1/4" | 29.1" | 100 hp | 40 hp | Surface | €9,125.03 | |
 |
ECN0542CAA-R63/F | 8.47" | 29.1" | 440/460V AC | 14 1/4" | 29.1" | 100 hp | 40 hp | Through Panel | - | RFQ
|
|
ECN0542EAA-R63/F | 8.47" | 29.1" | 208V AC | 14 1/4" | 29.1" | 100 hp | 40 hp | Surface | €9,125.03 | |
 |
ECN0544AAA-R63/F | 8.47" | 29.1" | 120V AC | 14 1/4" | 29.1" | 100 hp | 40 hp | Surface | €11,141.38 | |
|
ECN0544BAA-R63/F | 8.47" | 29.1" | 220/240V AC | 14 1/4" | 29.1" | 100 hp | 40 hp | Surface | €11,141.38 | |
|
ECN0544CAA-R63/F | 8.47" | 29.1" | 480V AC | 14 1/4" | 29.1" | 100 hp | 40 hp | Surface | €11,141.38 |
