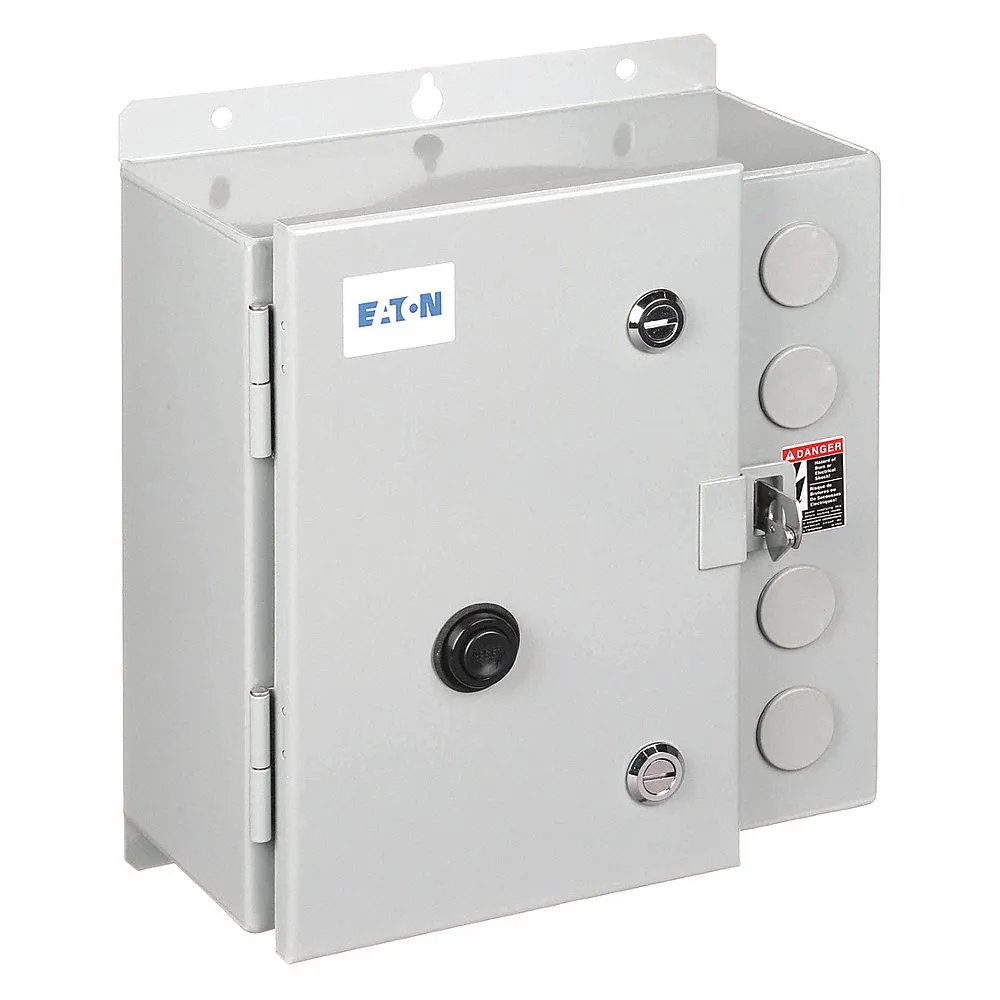

EATON ECN0528AAA-R63/D NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 2, 45 A, 120 VAC Coil
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€2,177.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Action | Nonreversing |
| Auxiliary Contact Module Capacity | 4 |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 110/120V AC |
| Depth | 6.7" |
| Features | Solid State Overload Relay |
| Frequency | 50/60 Hz |
| Height | 13.31" |
| Hp @ 1 Ph-240v | 7 1/2 hp |
| Hp @ 1 Phase-120v | 3 hp |
| Hp @ 3 Phase-208v | 10 hp |
| Hp @ 3 Phase-240v | 15 hp |
| Hp @ 3 Phase-480v | 25 hp |
| Hp @ 3 Phase-575v | 25 hp |
| Hp @ 3 Phase-600v | 25 hp |
| Included | Solid State Overload Relay |
| Included Auxiliary Contacts | Yes |
| Max. Amps (ac) | 45A |
| Max. Overload Relay Amps Setting | 45A |
| Max. Voltage | 600V AC |
| Min. Overload Relay Amps Setting | 9A |
| Mounting Style | Surface |
| Nema Enclosure Rating | 12 |
| Nema Size | 2 |
| No. Of Auxillary Contacts | 2 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Overall Depth | 15.1" |
| Overall Height | 9.7" |
| Overall Width | 12" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Reversing Capability | Non Reversing |
| Series | Freedom Series |
| Starter Style | NEMA |
| Thermal Unit Code | Not Applicable |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Width | 9 21/25" |
Shipping Info:
| Ship weight (kg) | 9.13 |
| Ship height (cm) | 24.64 |
| Ship length (cm) | 38.35 |
| Ship width (cm) | 30.48 |
| Country of Origin | US |
Product Variants
| Model | Coil Voltage | Overall Depth | Overall Height | Overall Width | Frequency | Max. Amps (ac) | Nominal Coil Voltage @ 60hz | Nema Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ECN0508AAA-R63/C | 110/120V AC | 15.1" | 9.7" | 11 1/2" | 50/60 Hz | 18A | 120V AC | - | €1,216.93 | |
| ECN0508AAA-R63/BL30 | 110/120V AC | 15.1" | 9.7" | 11 1/2" | 50/60 Hz | 18A | 120V AC | - | €1,709.48 | |
| ECN0508CAA-R63/B | 480V AC | 15.1" | 9.7" | 11 1/2" | 50/60 Hz | 18A | 480V AC | - | €1,709.48 | |
| ECN0508BAA-R63/B | 220/240V AC | 15.1" | 9.7" | 11 1/2" | 50/60 Hz | 18A | 240V AC | - | €1,709.48 | |
| ECN0508BAA-R63/C | 220/240V AC | 15.1" | 9.7" | 11 1/2" | 50/60 Hz | 18A | 240V AC | - | €1,216.93 | |
| ECN0508EAA-R63/BL30 | 208V AC | 15.1" | 9.7" | 11 1/2" | 60 Hz | 18A | 208V AC | - | €1,709.48 | |
| ECN0508CAA-R63/C | 480V AC | 15.1" | 9.7" | 11 1/2" | 50/60 Hz | 18A | 480V AC | - | €1,216.93 |
