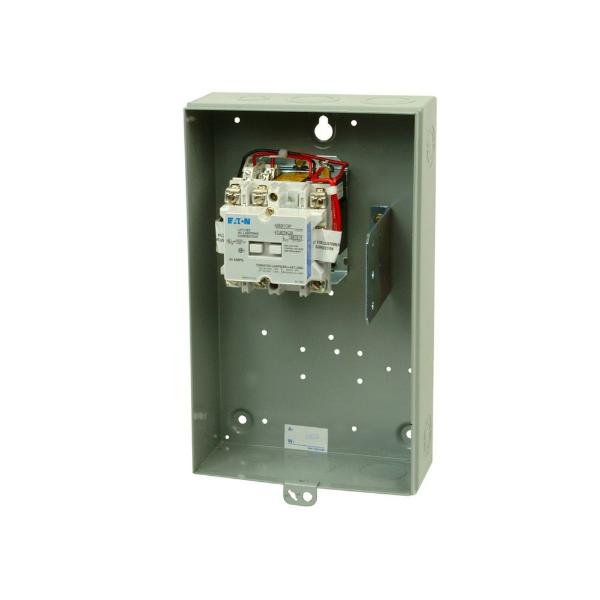

EATON ECC04C8A8A-S3 Mechanically Held Lighting Contactor, 30A, NEMA 12, 2P
Get it by Monday, Dec 22
€6,078.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Lighting Contactor |
| Amperage Rating | 30A |
| Coil Voltage | 277V AC |
| Contact Rating | 30A |
| Enclosure Material | Steel |
| Frequency | 60 Hz |
| Height | 14.37" |
| Length | 7.51" |
| Nema Enclosure Rating | NEMA 12 |
| Notes | Ampere Rating Is Based On A Maximum Load Voltage Of 480V For Tungsten Lamp Applications And 600V For Ballast Or Mercury Vapor Type Applications |
| Operation | Mechanically Held, Magnetically Latched |
| Series | C30Cn |
| Type | Non-combination Electrically And Mechanically Held |
| Width | 16.26" |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 36.5 |
| Ship length (cm) | 19.08 |
| Ship width (cm) | 41.3 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Height | Price | |
|---|---|---|---|---|
| ECC04C1A2A | - | 12 3/5" | €3,063.79 | |
| ECC04C1A2A-P8 | - | 12 3/5" | €3,260.59 | |
| ECC04C1A2A-C18 | - | 12 3/5" | - | RFQ
|
| ECC04C1A4A-C18 | - | 12 3/5" | €3,493.82 | |
| ECC04C1A2A-S3 | - | 12 3/5" | - | RFQ
|
| ECC04C1A3A | - | 12 3/5" | €2,760.35 | |
| ECC04C1A3A-S3P23 | - | 12 3/5" | €5,227.56 |
