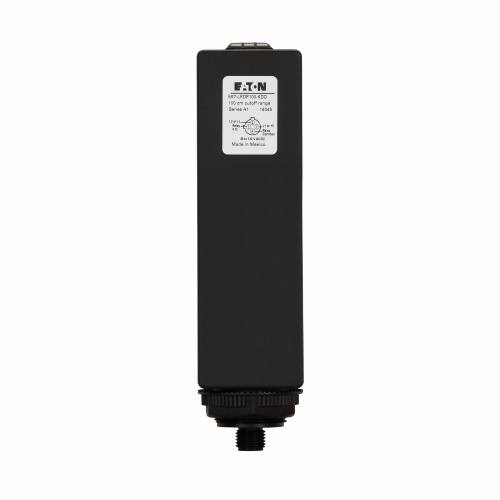

EATON E67-LRDP100-KDD Photoelectric Sensor, 40 Inch, 75 mA At 400V Ac/Dc, 20-132V Ac/Dc Input, Auto Reset
Get it by Tuesday, Sep 1
€1,700.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | 4-pin M12 Connector |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA at 30V DC |
| Enclosure Back Cover Material | Cycoloy Polycarbonate/ABS |
| Enclosure Material | Lexan Polycarbonate |
| Height | 6.53" |
| Input Voltage | 18-30V DC |
| Led Indicator | Power On, Green Output On, Red |
| Length | 2.33" |
| Max. Amps | 100 mA , 75 mA |
| Max. Operating Temp. | 131°F |
| Min. Operating Temp. | -31°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| Notes | Ranges Based On 18-Inch White Card. Cutoff Range, Sensor Will Ignore A 90% Reflectance Card at This Range. |
| Operating Mode | Background Suppression |
| Product Name | Eaton E67 Long-range PerfectProx Background Suppression Photoelectric Sensor |
| Protection Type | Protected For Short Circuit But Not Overload |
| Sensor Type | Back Ground Suppression |
| Switch Type | Photoelectric |
| Width | 1.69" |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 16.59 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 4.29 |
| Country of Origin | US |
Product Variants
| Model | Height | Enclosure Material | Input Voltage | Max. Amps | Min. Operating Temp. | Sensor Type | Operating Mode | Contact Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E67-LRDP060-HDD | 6.53" | Lexan Polycarbonate | 20-132V AC/DC | 75 mA | -31°F | Back Ground Suppression | Background Suppression | 75 MA at 400V AC/DC | €1,002.38 | |
| E67-LRDP060-HLD | 6.53" | Lexan Polycarbonate | 20-132V AC/DC | 75 mA | -31°F | Back Ground Suppression | Background Suppression | 75 MA at 400V AC/DC | €1,002.38 | |
| E67-LRDP060-KLD | 6.53" | Lexan Polycarbonate | 18-30V DC | 100 mA | -31°F | Back Ground Suppression | Background Suppression | 100 MA at 30V DC | €1,700.49 | |
| E67-LRDP070-HLD | 6.53" | Lexan Polycarbonate | 20-132V AC/DC | 75 mA | -31°F | Back Ground Suppression | Background Suppression | 75 MA at 400V AC/DC | €1,002.38 | |
| E67-LRDP080-HDD | 6.53" | Lexan Polycarbonate | 20-132V AC/DC | 75 mA | -31°F | Back Ground Suppression | Background Suppression | 75 MA at 400V AC/DC | €1,002.38 | |
| E67-LRDP070-KDD | 6.53" | Lexan Polycarbonate | 18-30V DC | 100 mA | -31°F | Back Ground Suppression | Background Suppression | 100 MA at 30V DC | €1,135.54 | |
| E67-LRDP070-HDD | 6.53" | Lexan Polycarbonate | 20-132V AC/DC | 75 mA | -31°F | Back Ground Suppression | Background Suppression | 75 MA at 400V AC/DC | €1,002.38 |
