EATON E65-SMPR3-HLD Cylindrical Photoelectric Sensor, 10 to 30 VDC, NPN/PNP, 4-Pin Micro Connector, Light On
Item: BJ3EFFModel: E65-SMPR3-HLDCross Ref: 2XDP9
7 In Stock
Ships within 2 days via
5.00% off
€218.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | Resin |
| Cable Sheath Material | PVC |
| Connection | Custom Connectors |
| Contact Configuration | Health PNP Open Collector Beam Status NPN |
| Contact Rating | 100 MA at 30V DC |
| Cord Length | 18 ft. |
| Cylindrical Sensor Dims. (d X L) | 18 mm x 33 mm |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Red Light |
| Enclosure Lens Material | Polycarbonate |
| Features | Auto Reset Short Circuit |
| Height | 1.29" |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 10-30V DC |
| Ip Rating | IP68, IP69K |
| Led Indicator | Marginal Gain, Orange Power On, Green Output Status, Red |
| Length | 2.17" |
| Max. Amps | 100 mA |
| Max. Load Amps | 100 mA |
| Max. Operating Temp. | 131°F |
| Max. Sensing Distance | 3m |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 30 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Pins | 4 |
| Nominal Sensor Dia. | M18 Threaded |
| Operating Mode | Polarized Retroreflective |
| Output Circuit | NPN, PNP |
| Output Circuit Type | NPN And PNP |
| Overall Dia. | 18 mm |
| Overall Height | 33 mm |
| Overall Width | 37 mm |
| Product Name | Eaton E65 SM Compact Photoelectric Sensor |
| Product Type | Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Response Time | 1 ms |
| Sensing Method | Retroreflective |
| Sensor Body Style | Cylindrical |
| Sensor Connector Type | 4 Pin M12 |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Light On |
| Sensor Type | Polarized Retroreflective |
| Series | E65 SM Series |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switch Type | Photoelectric |
| Switching Frequency | 500 Hz |
| Width | 1.47" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 3.73 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Connection | Max. Amps | Max. Load Amps | Supply Voltage | Electrical Connection | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E65-SMPR3-GD | 1.29" | 18-264V AC/18-50V DC | 6.6 Ft (2 M) Cable | 200 mA | 200 mA | 18-264V AC/18-50V DC | Bare Wire | 33 mm | €309.17 | |
|
E65-SMPR3-HDD | 1.47" | 10-30V DC | M12 | 100 mA | 100 mA | 10-30V DC | M12 | 37 mm | €260.95 | |
 |

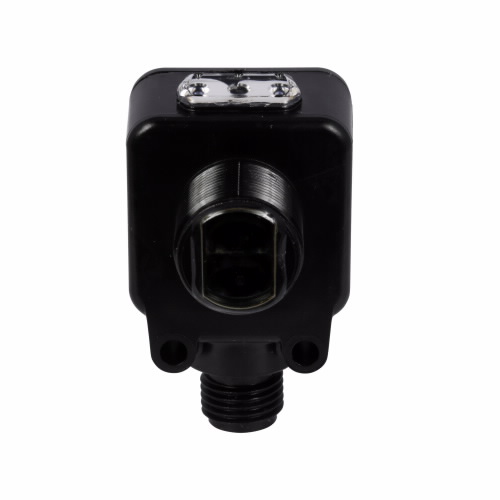

E65-SMPR3-GLD | 1.47" | 10-30V DC | M12 | 100 mA | 100 mA | 18-264V AC/18-50V DC | M12 | 37 mm | €345.58 | |
|
E65-SMPR3-GL | 1.29" | 18-264V AC/18-50V DC | 6.6 Ft (2 M) Cable | 200 mA | 200 mA | 18-264V AC/18-50V DC | Bare Wire | 33 mm | €327.46 | |
|
E65-SMPR3-HD | 1.47" | 10-30V DC | 6.6 Ft (2 M) Cable | 100 mA | 100 mA | 10-30V DC | Bare Wire | 37 mm | €233.05 | |
|
E65-SMPR3-HL | 1.29" | 10-30V DC | 4-pin M12 Connector | 100 mA | 100 mA | 10-30V DC | Bare Wire | 33 mm | €232.71 |
