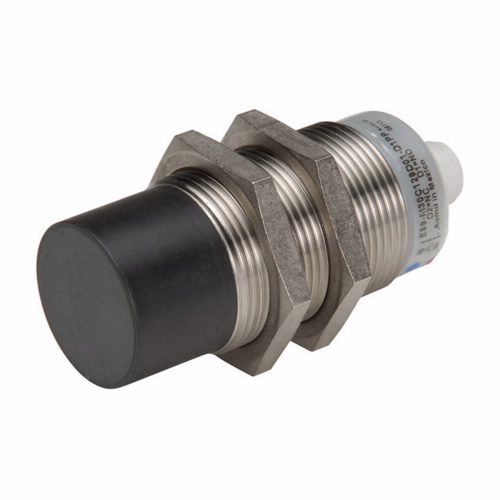

EATON E59-M30C129D01-D1PP Inductive Proximity Sensor, Dual Pnp Open Collector, 500 mA At 6-30 VDC
Get it by Tuesday, Aug 25
€612.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 3% Of Sensing Distance |
| Actuator Function | Unshielded |
| Connection | 4-pin M12 Connector |
| Contact Configuration | Dual PNP Open Collector, NO |
| Contact Rating | 500 mA at 6-30V DC, 300 mA at 32-48V DC |
| End Bell Material | Polycarbonate |
| Front Cap Material | Polyphenylene Sulfide |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Green Power Up Turns Red When Output Energized |
| Length | 1.18" |
| Max. Amps | 500 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Product Height | 2 23/25" |
| Product Name | Eaton E59 IProx Programmable Inductive Proximity Sensor |
| Product Width | 1.18" |
| Protection Type | Auto Reset Short Circuit |
| Sensor Type | Inductive Proximity |
| Tube Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 7.42 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Input Voltage | Max. Amps | Min. Operating Temp. | Actuator Function | Protection Type | Cable Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E5912DCKIT | 2.71" | 0.47" | - | - | -40°F | - | - | - | €796.55 | |
 |
E5918ACKIT | 2.71" | 0.47" | - | - | -40°F | - | - | - | €525.86 | |
|
E5918DCKIT | 2.73" | 0.71" | - | - | -40°F | - | - | - | €585.74 | |
|
E5930ACKIT | 2 23/25" | 1.18" | - | - | -40°F | - | - | - | €525.86 | |
|
E5930DCKIT | 2 23/25" | 1.18" | - | - | -40°F | - | - | - | €1,034.51 | |
 |
E59-30LE22-BD | 2.78" | 1.18" | 6-48V DC | 500 mA | -13°F | Semi Shielded | Auto Reset Short Circuit | - | €411.24 | |
|
E5912ACKIT | 2.71" | 0.47" | - | - | -40°F | - | - | - | €525.86 |
