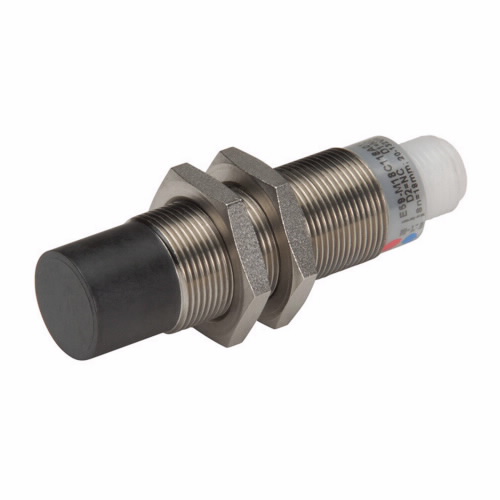

EATON E59-M18C116D01-D2 Inductive Proximity Sensor, Dist. 16 Mm, Npn/Pnp Auto Config.
Get it by Monday, Dec 22
€360.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 3% Of Sensing Distance |
| Actuator Function | Unshielded |
| Connection | 4-pin M12 Connector |
| Contact Configuration | NPN/PNP Auto Configure, NC |
| Contact Rating | 500 mA at 6-30V DC, 300 mA at 32-48V DC |
| End Bell Material | Polycarbonate |
| Front Cap Material | Polyphenylene Sulfide |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Green Power Up Turns Red When Output Energized |
| Length | 0.71" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 500 mA |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Product Height | 2.73" |
| Product Name | Eaton E59 IProx Programmable Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Auto Reset Short Circuit |
| Sensor Type | Inductive Proximity |
| Tube Material | Stainless Steel |
| Warranty | 1 yr. |
| Weight | 0.1438 lbs. |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 6.93 |
| Ship length (cm) | 1.8 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Cable Length | Min. Operating Temp. | Number Of Pins | Ip Rating | Number Of Wires | Max. Operating Temp. | Cable Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
E5912DCKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €796.55 | |
 |
E5918ACKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €525.86 | |
|
E5918DCKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €585.74 | |
|
E5930ACKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €525.86 | |
|
E5930DCKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €1,034.51 | |
 |
E59-30LE22-BD | - | -13°F | - | IP67, IP69K | - | 158°F | - | €411.24 | |
|
E5912ACKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €525.86 |
