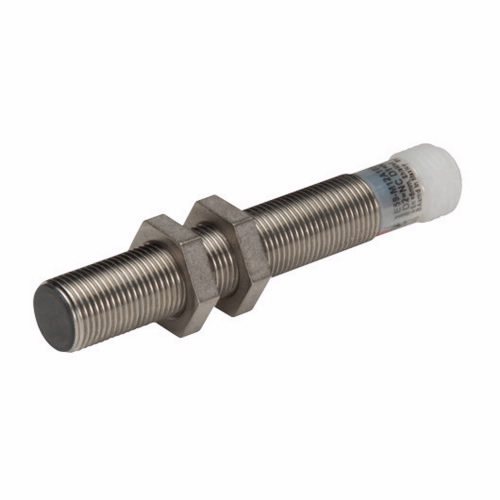

EATON E59-M12A105D01-D2 Sensor, Straight, 12 Mm, Shielded, M12, 3-Wire, 300 mA At 6-48 VDC, 4 Pin, 6-48 VDC
Get it by Monday, Dec 22
€308.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 1% Sensing Range |
| Actuator Function | Shielded |
| Connection | M12 |
| Contact Configuration | NPN/PNP Auto Configure, NC |
| Contact Rating | 300 mA at 6-48V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | 360 AA Viewable LED |
| Length | 3.05" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 300 mA |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Number Of Pins | 4 |
| Number Of Wires | 3 |
| Product Height | 0.47" |
| Product Name | Eaton E59 IProx Programmable Inductive Proximity Sensor |
| Product Width | 0.47" |
| Protection Type | Auto Reset |
| Temperature Rating | -40°F to +158°F |
| Type | E59 |
| Warranty | 1 yr. |
| Weight | 0.03 lbs. |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.19 |
| Ship length (cm) | 7.75 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Cable Length | Min. Operating Temp. | Number Of Pins | Ip Rating | Number Of Wires | Max. Operating Temp. | Cable Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
E5912DCKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €796.55 | |
 |
E5918ACKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €525.86 | |
|
E5918DCKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €585.74 | |
|
E5930ACKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €525.86 | |
|
E5930DCKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €1,034.51 | |
 |
E59-30LE22-BD | - | -13°F | - | IP67, IP69K | - | 158°F | - | €411.24 | |
|
E5912ACKIT | - | -40°F | - | IP67, IP69K | - | 158°F | - | €525.86 |
