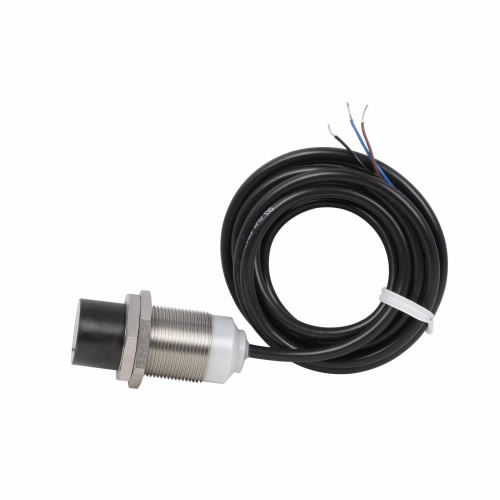

EATON E59-A30C125D01-C1 Inductive Proximity Sensor, Straight, Dist. 25 Mm, 15-30VDC Input, Unshielded
Get it by Monday, Aug 31
€544.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | <30 Um After 1 Hour Warmup |
| Actuator Function | Unshielded |
| Cable Material | PVC |
| Connection | 4-pin M12 Connector |
| End Bell Material | Polycarbonate |
| Front Cap Material | Polyphenylene Sulfide |
| Input Voltage | 15-30V DC |
| Ip Rating | IP67, IP69K |
| Length | 1.18" |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Product Height | 2 23/25" |
| Product Name | Eaton E59 AccuProx Analog Inductive Proximity Sensor |
| Product Width | 1.18" |
| Protection Type | Reverse Polarity And Short Circuit |
| Sensor Type | Analog Inductive Proximity Inductive Proximity |
| Tube Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 7.42 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Connection | Actuator Function | Cable Length | Input Voltage | End Bell Material | Front Cap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E59-A12A104D01-C1 | 3.05" | 0.47" | 4-pin M12 Connector | Shielded | - | 15-30V DC | Polycarbonate | Polyphenylene Sulfide | €958.94 | |
|
E59-A12A104D01P-C1 | 2.46" | 0.47" | 4-pin M12 Connector | Shielded | - | 15-30V DC | Polycarbonate | Polyphenylene Sulfide | €465.24 | |
 |
E59-A12A104C02-C1 | 2.46" | 0.47" | 6.6 Ft (2 M) Cable | Shielded | 79.2 ft. | 15-30V DC | Polycarbonate | Polyphenylene Sulfide | €428.02 | |
|
E59-A12A104D01P-CV | 2.46" | 0.47" | 4-pin M12 Connector | Shielded | - | 15-30V DC | Polycarbonate | Polyphenylene Sulfide | €476.22 | |
 |
E59-A12C108D01P-C1 | 2.46" | 0.47" | 4-pin M12 Connector | Unshielded | - | 15-30V DC | Polycarbonate | Polyphenylene Sulfide | €465.24 | |
|
E59-A12C108C02-C1 | 2.46" | 0.47" | 6.6 Ft (2 M) Cable | Unshielded | 79.2 ft. | 15-30V DC | Polycarbonate | Polyphenylene Sulfide | - | RFQ
|
 |
E59-A18A107D01-C1 | 2.73" | 0.71" | 4-pin M12 Connector | Shielded | - | 15-30V DC | Polycarbonate | Polyphenylene Sulfide | €1,054.20 |
