EATON E59-A30A112C02-CV Cylindrical Proximity Sensor, 15 to 30 VDC, 140 Hz Proximity Sensor, 0 to 10V/0 to 20 mA
Item: BJ3DWXModel: E59-A30A112C02-CVCross Ref: 2XDH3
7 In Stock
Ships within 2 days via
5.00% off
€645.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage | Not Rated |
| Accuracy | <50 Um After 1 Hour Warmup |
| Actuator Function | Shielded |
| Analog Output | 0-10V DC, 0-20 mA |
| Body Finish | Nickel Plated |
| Body Material | Stainless Steel |
| Cable Length | 79.2 ft. |
| Cable Material | PVC |
| Connection | 6.6 Ft (2 M) Cable |
| Dc Supply Voltage Rating | 15-30V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| End Bell Material | Polycarbonate |
| Features | Extreme Temperature Resistant, High Output Resolution, High Pressure Resistant, Washdown Resistant |
| Front Cap Material | Polyphenylene Sulfide |
| Included Indicator Lights | No Indicator Lights Included |
| Input Voltage | 15-30V DC |
| Ip Rating | IP67, IP69K |
| Length | 1.18" |
| Max. Operating Temp. | 158°F |
| Max. Output Circuit Voltage | 10V |
| Max. Sensing Distance | 12 mm |
| Min. Operating Temp. | -40°F |
| Min. Output Circuit Amps | 0 mA |
| Min. Output Circuit Voltage | 0V |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Wires | 3 |
| Nominal Sensor Dia. | M30 Threaded |
| Output Circuit | Analog |
| Output Circuit Amps-max. | 20 mA |
| Output Circuit Type | Analog |
| Overall Height | 70 mm |
| Product Height | 2.74" |
| Product Name | Eaton E59 AccuProx Analog Inductive Proximity Sensor |
| Product Width | 1.18" |
| Protection Type | Reverse Polarity And Short Circuit |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 30 mm |
| Sensor Type | Analog Inductive Proximity Inductive Proximity |
| Series | E59 Series |
| Supply Voltage | 15-30V DC |
| Tube Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 6.96 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Model | Product Height | Product Width | Connection | Sensor Dia. | Electrical Connection | Overall Height | Nominal Sensor Dia. | Actuator Function | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

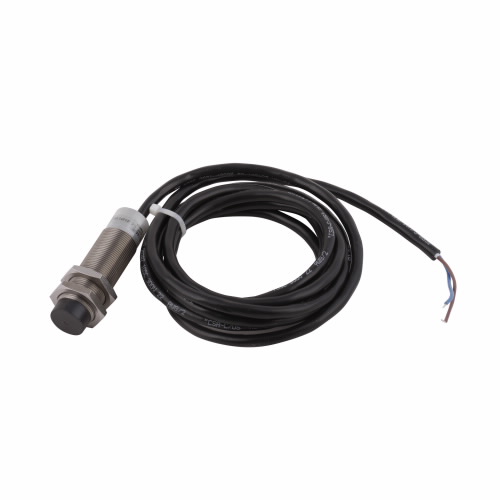

| E59-A12A104C02-CV | 2.46" | 0.47" | 6.6 Ft (2 M) Cable | 12 mm | Bare Wire | 62 mm | M12 Threaded | Shielded | €598.56 | |
| E59-A12A104D01-CV | 3.05" | 0.47" | 4-pin M12 Connector | 12 mm | M12 | 78 mm | M12 Threaded | Shielded | €572.36 | |
| E59-A12C108D01-CV | 3.05" | 0.47" | 4-pin M12 Connector | 12 mm | M12 | 78 mm | M12 Threaded | Unshielded | €549.35 | |
| E59-A12C108C02-CV | 2.46" | 0.47" | 6.6 Ft (2 M) Cable | 12 mm | Bare Wire | 62 mm | M12 Threaded | Unshielded | €619.11 | |

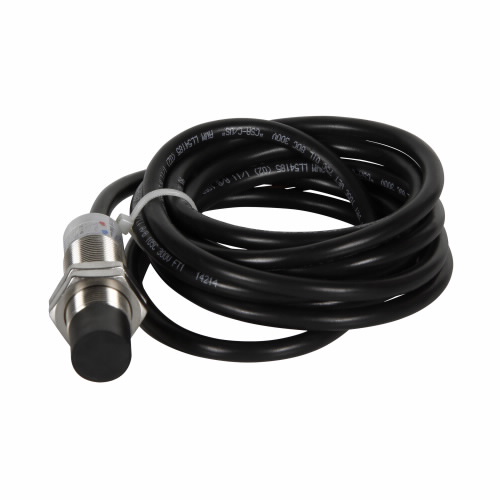

| E59-A18A107D01-CV | 2.73" | 0.71" | 4-pin M12 Connector | 18 mm | M12 | 69 mm | M18 Threaded | Shielded | €660.33 | |
| E59-A18C115C02-CV | 1 4/5" | 0.71" | 6.6 Ft (2 M) Cable | 18 mm | Bare Wire | 65 mm | M18 Threaded | Unshielded | €678.71 | |
| E59-A18A107C02-CV | 2.54" | 0.71" | 6.6 Ft (2 M) Cable | 18 mm | Bare Wire | 65 mm | M18 Threaded | Shielded | €647.02 |
