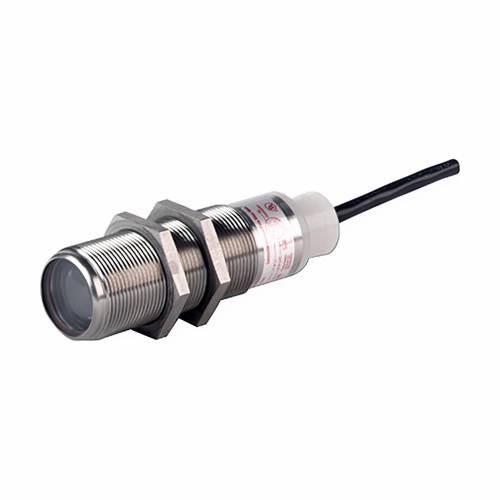

EATON E58CBL18A2D2 Photoelectric Sensor, 0.71 Dia., Distance 8 Inch, 300 mA Ac/Dc At 20-264VAC/15-30VDC
Get it by Thursday, Dec 18
€864.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sensor |
| Cable Sheath Material | PVC |
| Connection | 9.8 Ft (3 M) Cable |
| Contact Configuration | DC, NPN Open Collector AC, L1 Switched |
| Contact Rating | 300 MA AC/DC at 20-264V AC/15-30V DC |
| Cord Length | 120 ft. |
| Enclosure Material | Stainless Steel |
| Height | 2 1/5" |
| Input Voltage | 20-264V AC @ 50/60 Hz, 15-30V DC |
| Ip Rating | IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.47" |
| Max. Ac Amps | 300 mA |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 300 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| Operating Mode | Diffuse Reflective |
| Operating Temperature - Min | -40°F |
| Product Name | Eaton Harsh-duty Sensor |
| Protection Type | Latching Short Circuit |
| Sensor Type | Diffuse Reflective |
| Switch Type | Photoelectric |
| Warranty | 3 yrs. |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Operating Mode | Ip Rating | Price | |
|---|---|---|---|---|---|
 |

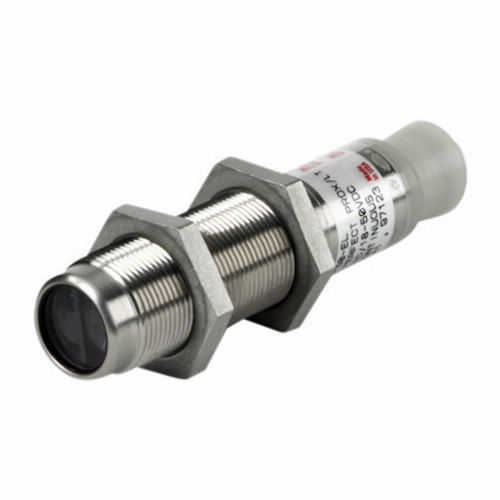

E58-18DP100-DLP | Background Suppression | IP69K | €1,335.38 | |
|
E58-18DP100-HDP | Background Suppression | IP69K | €1,264.35 | |
 |

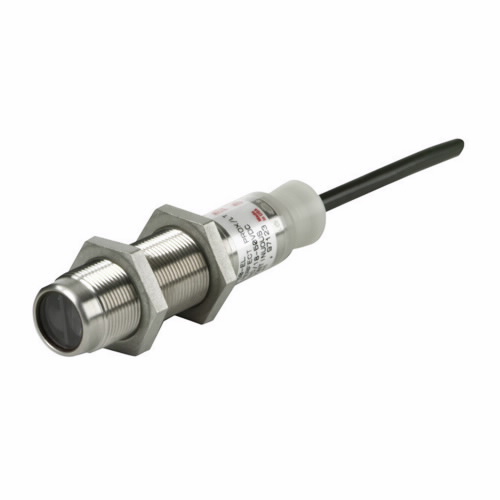

E58-18DP100-HD | Background Suppression | IP69K | €836.23 | |
|
E58-18DP100-HL | Background Suppression | IP69K | €662.14 | |
|
E58-18DP100-ED | Background Suppression | IP69K | €735.91 | |
 |
E58-18DP100-EL | Background Suppression | IP69K | €1,149.42 | |
|
E58-18DP100-DDP | Background Suppression | IP69K | €891.72 |
