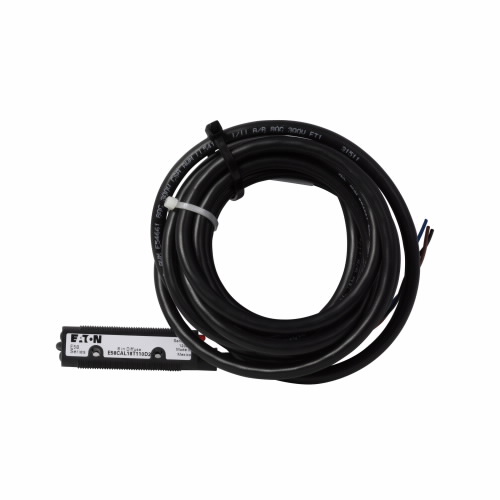

EATON E58CAL18T110D2 Photoelectric Sensor, 0.71 Dia., Distance 8 Inch, 250 mA Max Dc, Npn 250 mA At 30VDC
Get it by Tuesday, Sep 1
€808.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sensor |
| Cable Sheath Material | PVC |
| Connection | 9.8 Ft (3 M) Cable |
| Contact Configuration | NPN Open Collector |
| Contact Rating | NPN, 250 MA at 30V DC |
| Cord Length | 120 ft. |
| Enclosure Material | Stainless Steel |
| Height | 1 3/4" |
| Input Voltage | 10-30V DC |
| Ip Rating | IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.47" |
| Max. Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| Notes | Short Circuit And Reverse Polarity Protected |
| Operating Mode | Diffuse Reflective |
| Product Name | Eaton Harsh-duty Sensor |
| Protection Type | Auto Reset Short Circuit |
| Sensor Type | Diffuse Reflective |
| Switch Type | Photoelectric |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Enclosure Material | Height | Max. Operating Temp. | Sensor Type | Min. Operating Temp. | Cord Length | Operating Mode | Max. Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E58-18DP100-DLP | Stainless Steel | 3.15" | 158°F | Back Ground Suppression | -40°F | 7" | Background Suppression | 100 mA | €1,335.38 | |
|
E58-18DP100-HDP | Stainless Steel | 3.15" | 131°F | Back Ground Suppression | -40°F | 7" | Background Suppression | 100 mA, 250 mA | €1,264.35 | |
 |
E58-18DP100-HD | Stainless Steel | 3.15" | 131°F | Back Ground Suppression | -40°F | 79.2 ft. | Background Suppression | 100 mA, 250 mA | €836.23 | |
|
E58-18DP100-HL | Stainless Steel | 3.15" | 131°F | Back Ground Suppression | -40°F | 79.2 ft. | Background Suppression | 100 mA, 250 mA | €662.14 | |
 |
E58-18DP100-ED | Stainless Steel | 3.15" | 158°F | Back Ground Suppression | -40°F | 79.2 ft. | Background Suppression | 100 mA | €735.91 | |
 |
E58-18DP100-EL | Stainless Steel | 1 1/2" | 158°F | Back Ground Suppression | -40°F | 79.2 ft. | Background Suppression | 100 mA | €1,149.42 | |
|
E58-18DP100-DDP | Stainless Steel | 3.15" | 158°F | Back Ground Suppression | -40°F | 7" | Background Suppression | 100 mA | €891.72 |
