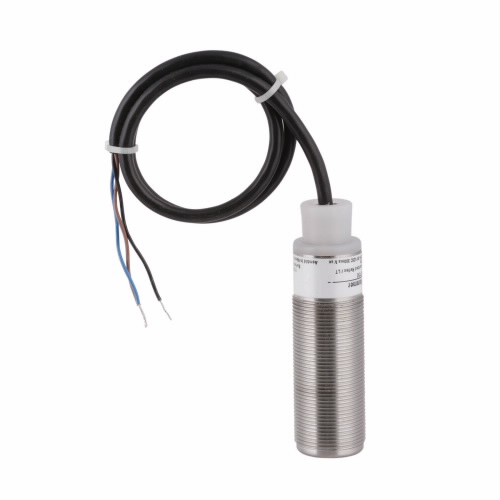

EATON E58-30RS7150 Photoelectric Sensor, 1.18 Dia., Distance 59 Feet, 2 Feet Cable, 10-30 VDC Input
Get it by Tuesday, Sep 1
€713.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Cable Sheath Material | PVC |
| Connection | 2 Ft (0.6 M) Cable |
| Contact Configuration | DC, NPN Open Collector AC, L1 Switched |
| Contact Rating | 300 MA DC NPN / 300 MA AC 3 - Wire |
| Cord Length | 24 ft. |
| Enclosure Material | Stainless Steel |
| Height | 4 9/25" |
| Input Voltage | 10-30V DC |
| Ip Rating | IP69K |
| Led Indicator | Output Status, Red |
| Length | 1.18" |
| Max. Operating Temp. | 131°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Operating Mode | Non Polarized Retroreflective |
| Product Name | Eaton Harsh-duty Sensor |
| Protection Type | Latching Short Circuit |
| Sensor Type | Retroreflective |
| Switch Type | Photoelectric |
| Width | 1.18" |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 11.07 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Product | Model | Enclosure Material | Height | Max. Operating Temp. | Sensor Type | Min. Operating Temp. | Cord Length | Operating Mode | Max. Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E58-18DP100-DLP | Stainless Steel | 3.15" | 158°F | Back Ground Suppression | -40°F | 7" | Background Suppression | 100 mA | €1,335.38 | |
|
E58-18DP100-HDP | Stainless Steel | 3.15" | 131°F | Back Ground Suppression | -40°F | 7" | Background Suppression | 100 mA, 250 mA | €1,264.35 | |
 |
E58-18DP100-HD | Stainless Steel | 3.15" | 131°F | Back Ground Suppression | -40°F | 79.2 ft. | Background Suppression | 100 mA, 250 mA | €836.23 | |
|
E58-18DP100-HL | Stainless Steel | 3.15" | 131°F | Back Ground Suppression | -40°F | 79.2 ft. | Background Suppression | 100 mA, 250 mA | €662.14 | |
 |
E58-18DP100-ED | Stainless Steel | 3.15" | 158°F | Back Ground Suppression | -40°F | 79.2 ft. | Background Suppression | 100 mA | €735.91 | |
 |
E58-18DP100-EL | Stainless Steel | 1 1/2" | 158°F | Back Ground Suppression | -40°F | 79.2 ft. | Background Suppression | 100 mA | €1,149.42 | |
|
E58-18DP100-DDP | Stainless Steel | 3.15" | 158°F | Back Ground Suppression | -40°F | 7" | Background Suppression | 100 mA | €891.72 |
