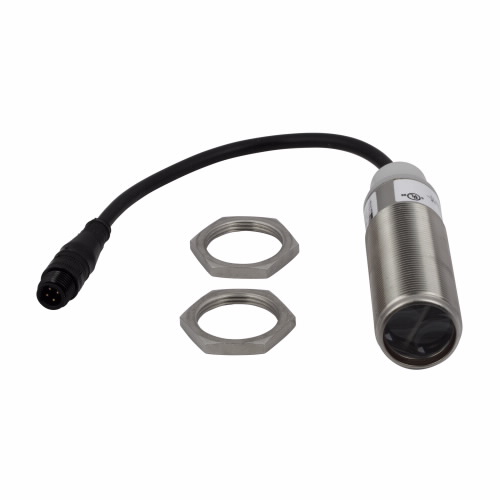

EATON E58-30DP150-GLP Photoelectric Sensor, 1.18 Dia., Distance 6 Inch, 20-132 VAC 50/60 Hz Or 15-30 VDC Input
Get it by Tuesday, Dec 23
€720.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Cable Sheath Material | PVC |
| Connection | 4-pin Pigtail Dual Key Micro Connector |
| Contact Configuration | AC, L1 Switched DC, NPN Open Collector |
| Contact Rating | 300 MA DC NPN / 300 MA AC 3 - Wire |
| Cord Length | 7" |
| Enclosure Material | Stainless Steel |
| Height | 4 9/25" |
| Input Voltage | 20-132V AC @ 50/60 Hz, 15-30V DC |
| Ip Rating | IP69K |
| Led Indicator | Output Status, Red |
| Length | 1.18" |
| Max. Ac Amps | 300 mA |
| Max. Operating Temp. | 131°F |
| Maximum Dc Current | 300 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Notes | Sensor Will Detect A 90% Reflectance Card at The Sensing Range, Sensor Will Ignore A 90% Reflectance Card at The Cutoff Range |
| Operating Mode | Background Suppression |
| Operating Temperature - Min | -40°F |
| Product Name | Eaton Harsh-duty Sensor |
| Protection Type | Latching Short Circuit |
| Sensor Type | Back Ground Suppression |
| Switch Type | Photoelectric |
| Warranty | 3 yrs. |
| Weight | 0.2688 lbs. |
| Width | 1.18" |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 11.07 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Product | Model | Operating Mode | Ip Rating | Price | |
|---|---|---|---|---|---|
 |
E58-18DP100-DLP | Background Suppression | IP69K | €1,335.38 | |
|
E58-18DP100-HDP | Background Suppression | IP69K | €1,264.35 | |
 |
E58-18DP100-HD | Background Suppression | IP69K | €836.23 | |
|
E58-18DP100-HL | Background Suppression | IP69K | €662.14 | |
 |
E58-18DP100-ED | Background Suppression | IP69K | €735.91 | |
 |
E58-18DP100-EL | Background Suppression | IP69K | €1,149.42 | |
|
E58-18DP100-DDP | Background Suppression | IP69K | €891.72 |
