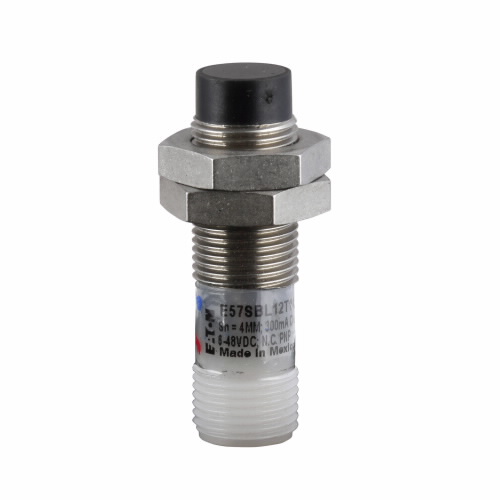

EATON E57SBL12A2EA Inductive Proximity Sensor, Dist. 4 Mm, 2-Wire Ac/Dc, Unshielded
Get it by Monday, Aug 17
€637.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 3% |
| Actuator Function | Unshielded |
| Connection | 3-Pin Dual Key Micro Connector |
| Contact Configuration | 2-wire AC/DC, NC |
| Contact Rating | 250 mA at 40-240V AC/20-250V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 40-250V AC/20-250V DC |
| Ip Rating | IP67 |
| Led Indicator | Output Status, Red |
| Length | 0.47" |
| Max. Ac Amps | 250 mA |
| Max. Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Notes | Contact Factory For Current Series Transition. Cable Models Are Supplied As Standard With A 2-Meter Cable. A 5-Meter Cable Is Available By Adding S5 To The Catalog Number. Example, E57Salt110 Becomes E57Salt110S5. |
| Product Height | 2.69" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.47" |
| Protection Type | None |
| Sensor Type | Inductive Proximity |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 6.83 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Max. Amps | Ip Rating | Contact Configuration | Led Indicator | Actuator Function | Accuracy | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57SAL12A2 | 0.47" | 0.47" | 250 mA | IP67, IP69K | 2-wire AC/DC, NO | 360 AA Viewable LED | Shielded | Less Than 1% Sensing Range | €497.05 | |
|
E57SAL12A2EA | 2.69" | 0.47" | 250 mA | IP67 | 2-wire AC/DC, NO | Output Status, Red | Unshielded | Less Than 3% | €512.52 | |
|
E57SAL12A2S5 | 0.47" | 0.47" | 250 mA | IP67, IP69K | 2-wire AC/DC, NO | 360 AA Viewable LED | Shielded | Less Than 1% Sensing Range | €380.07 | |
 |
E57SAL12T110E | 0.47" | 0.47" | 250 mA | IP67 | NO NPN Open Collector | 360 AA Viewable LED | Unshielded | Less Than 3% Sensing Range | €379.84 | |
|
E57SAL12A2SA | 2 1/4" | 0.47" | 250 mA | IP67 | 2-wire AC/DC, NO | Output Status, Red | Shielded | Less Than 3% | €637.82 | |
 |
E57SAL12A2E | 2.45" | 0.47" | 250 mA | IP67, IP69K | 2-wire AC/DC, NO | Output Status, Red | Unshielded | Less Than 3% | €686.36 | |
 |
E57SAL12T110ED | 1 16/25" | 0.47" | 500 mA | IP67, IP69K | NPN Open Collector, NO | Output Status, Red | Unshielded | Less Than 3% | €379.84 |
