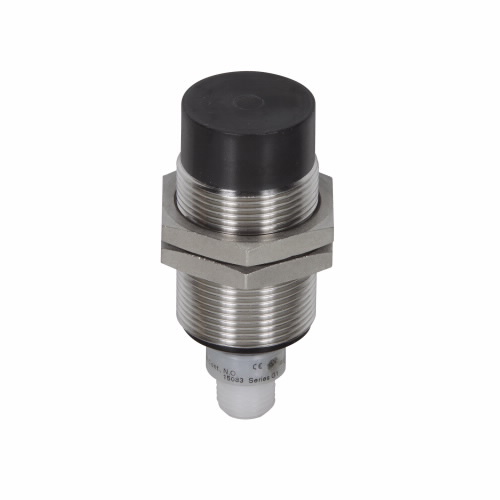

EATON E57SAL30A2EA Inductive Proximity Sensor, Dist. 15 Mm, 2-Wire Ac/Dc, Unshielded
Get it by Tuesday, Dec 23
€430.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 3% |
| Actuator Function | Unshielded |
| Connection | 3-Pin Dual Key Micro Connector |
| Contact Configuration | 2-wire AC/DC, NO |
| Contact Rating | 250 mA at 40-240V AC/20-250V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 40-250V AC/20-250V DC |
| Ip Rating | IP67 |
| Led Indicator | Output Status, Red |
| Length | 5" |
| Max. Ac Current | 250 mA |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 250 mA |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Notes | Contact Factory For Current Series Transition. Cable Models Are Supplied As Standard With A 2-Meter Cable. A 5-Meter Cable Is Available By Adding S5 To The Catalog Number. Example, E57Salt110 Becomes E57Salt110S5. |
| Product Height | 2" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 2" |
| Protection Type | None |
| Sensor Type | Inductive Proximity |
| Warranty | 1 yr. |
| Weight | 0.322 lbs. |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Cable Length | Number Of Pins | Max. Operating Temp. | Min. Operating Temp. | Cable Material | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
E57SAL12A2 | IP67, IP69K | 79.2 ft. | - | 158°F | -13°F | PVC | - | €497.05 | |
|
E57SAL12A2EA | IP67 | - | - | 158°F | -13°F | - | - | €512.52 | |
|
E57SAL12A2S5 | IP67, IP69K | 196.8 ft. | - | 158°F | -13°F | PVC | - | €380.07 | |
 |
E57SAL12T110E | IP67 | 79.2 ft. | - | 158°F | -13°F | PVC | - | €379.84 | |
|
E57SAL12A2SA | IP67 | - | - | 158°F | -13°F | - | - | €637.82 | |
 |
E57SAL12A2E | IP67, IP69K | 79.2 ft. | - | 158°F | -13°F | PVC | - | €686.36 | |
 |
E57SAL12T110ED | IP67, IP69K | - | - | 158°F | -13°F | - | - | €379.84 |
