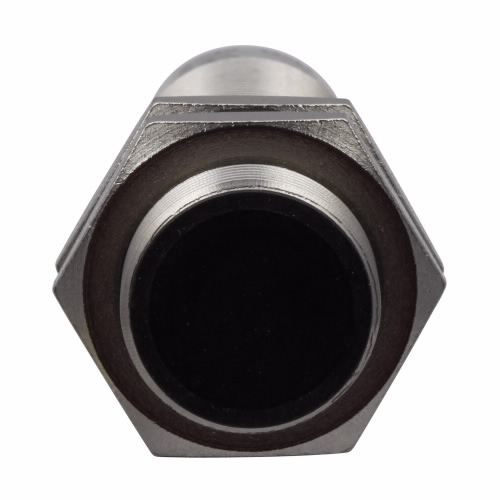

EATON E57SAL18A2SA Inductive Proximity Sensor, 5 Mm Range, Straight, 18 Mm, Shielded, 3 Pin/Dc, 20-250 VDC
Get it by Friday, Aug 21
€486.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 1% Sensing Range |
| Actuator Function | Shielded |
| Connection | Dual Key Micro |
| Contact Configuration | 2-wire AC/DC, NO |
| Contact Rating | 250 mA at 40-240V AC/20-250V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 40-250V AC @ 50/60 Hz, 20-250V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | 360 AA Viewable LED |
| Length | 2 18/25" |
| Max. Ac Amps | 250 mA |
| Max. Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Pins | 3 |
| Product Height | 0.71" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Resettable Short Circuit, Overload |
| Type | Premium+ Inductive Proximity Sensor |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 6.91 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Max. Amps | Ip Rating | Contact Configuration | Led Indicator | Actuator Function | Accuracy | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57SAL12A2 | 0.47" | 0.47" | 250 mA | IP67, IP69K | 2-wire AC/DC, NO | 360 AA Viewable LED | Shielded | Less Than 1% Sensing Range | €497.05 | |
|
E57SAL12A2EA | 2.69" | 0.47" | 250 mA | IP67 | 2-wire AC/DC, NO | Output Status, Red | Unshielded | Less Than 3% | €512.52 | |
|
E57SAL12A2S5 | 0.47" | 0.47" | 250 mA | IP67, IP69K | 2-wire AC/DC, NO | 360 AA Viewable LED | Shielded | Less Than 1% Sensing Range | €380.07 | |
 |
E57SAL12T110E | 0.47" | 0.47" | 250 mA | IP67 | NO NPN Open Collector | 360 AA Viewable LED | Unshielded | Less Than 3% Sensing Range | €379.84 | |
|
E57SAL12A2SA | 2 1/4" | 0.47" | 250 mA | IP67 | 2-wire AC/DC, NO | Output Status, Red | Shielded | Less Than 3% | €637.82 | |
 |
E57SAL12A2E | 2.45" | 0.47" | 250 mA | IP67, IP69K | 2-wire AC/DC, NO | Output Status, Red | Unshielded | Less Than 3% | €686.36 | |
 |
E57SAL12T110ED | 1 16/25" | 0.47" | 500 mA | IP67, IP69K | NPN Open Collector, NO | Output Status, Red | Unshielded | Less Than 3% | €379.84 |
