EATON E57SAL12A4E Cylindrical Proximity Sensor, 20 to 250 VAC, 20 Hz Proximity Sensor, 2 Wire, 2m Cable
Item: BJ3DHDModel: E57SAL12A4ECross Ref: 2XCX2
7 In Stock
Ships within 2 days via
5.00% off
€351.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 3% |
| Actuator Function | Unshielded |
| Cable Length | 79.2 ft. |
| Cable Material | PVC |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | 2-wire AC, NO |
| Contact Rating | 250 mA at 40-240V AC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 40-250V AC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.47" |
| Max. Ac Amps | 250 mA |
| Max. Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Notes | Cable Models Are Supplied As Standard With A 2-Meter Cable. A 5-Meter Cable Is Available By Adding S5 To The Catalog Number. Example, E57Salt110 Becomes E50Salt110S5. |
| Product Height | 2.45" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.47" |
| Protection Type | Short Circuit Protected |
| Sensor Type | Inductive Proximity |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 6.22 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Ip Rating | Actuator Function | Contact Configuration | Led Indicator | Accuracy | Sensor Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

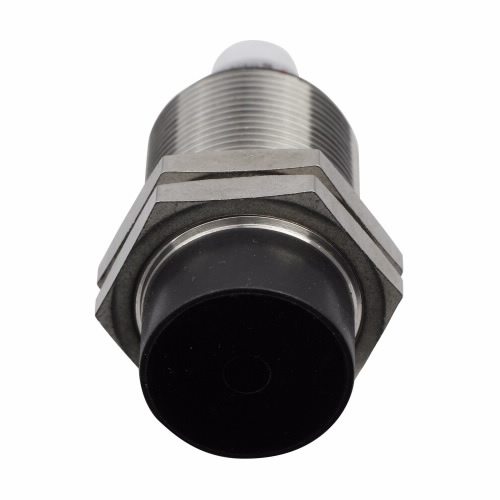

E57LAL30A2E | 1.18" | 1.18" | IP67, IP69K | Unshielded | 2-wire AC, NO | 360 AA Viewable LED | Less Than 3% Sensing Range | 30 mm | €500.57 | |
|
E57LBL30A2E | 2.73" | 1.18" | IP67 | Unshielded | 2-wire AC, NC | Output Status, Red | Less Than 3% | 30 mm | €477.04 | |
|
E57SAL12A4EA | 2.69" | 0.47" | IP67, IP69K | Unshielded | 2-wire AC, NO | Output Status, Red | Less Than 3% | 12 mm | €407.32 | |
|
E57SAL12A4 | 2.45" | 0.47" | IP67, IP69K | Shielded | 2-wire AC, NO | Output Status, Red | Less Than 3% | 12 mm | €369.61 | |
|
E57SAL12A4SA | 0.47" | 0.47" | IP67, IP69K | Shielded | 2-wire AC/DC, NO | 360 AA Viewable LED | Less Than 1% Sensing Range | 12 mm | €414.94 | |
|

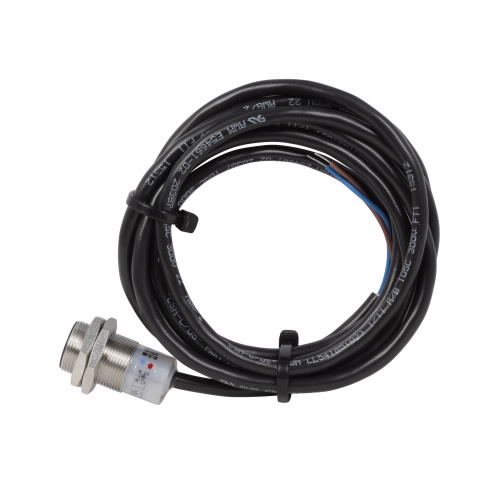

E57SAL18A4EA | 2 18/25" | 0.71" | IP67, IP69K | Unshielded | 2-wire AC, NO | Output Status, Red | Less Than 3% | 18 mm | €427.92 | |
 |
E57SAL18A4 | 2.54" | 0.71" | IP67, IP69K | Shielded | 2-wire AC, NO | Output Status, Red | Less Than 3% | 18 mm | €373.13 |
