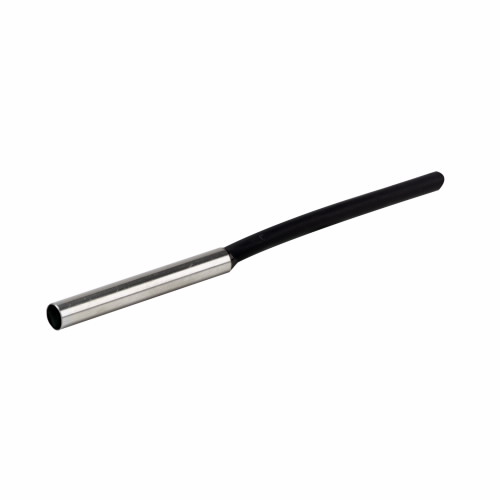

EATON E57EAL4T110SP Inductive Proximity Sensor, Dist. 0.8 Mm200 mA Max Dc, 200 mA At 30 VDC, 6.6 Ft. Cable
Get it by Friday, Aug 28
€367.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 1% |
| Actuator Function | Shielded |
| Cable Length | 79.2 ft. |
| Cable Material | PVC |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | NPN Open Collector, NO |
| Contact Rating | 200 mA at 30V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 10-30V DC |
| Ip Rating | IP67 |
| Led Indicator | Output Status, Red |
| Length | 4/25" |
| Max. Amps | 200 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Product Height | 1" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 4/25" |
| Protection Type | Short Circuit Protected |
| Sensor Type | Inductive Proximity |
| Type | Inductive Proximity Sensor Tubular Small Diameter |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 0.41 |
| Ship width (cm) | 0.41 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Connection | Contact Rating | Actuator Function | Contact Configuration | Led Indicator | Accuracy | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57EAL12T110ED | 1.97" | 0.47" | 4-pin M12 Connector | 200 mA at 30V DC | Unshielded | NPN Open Collector, NO | Output Status, Red | Less Than 1% | €277.90 | |
|
E57EAL18T111 | 6" | 1.9" | - | - | - | - | - | - | €302.64 | |
|
E57EAL12T110 | 1.18" | 0.47" | 6.6 Ft (2 M) Cable | 200 mA at 30V DC | Shielded | NPN Open Collector, NO | Output Status, Red | Less Than 1% | €221.49 | |
 |
E57EAL12T111SD | 1.97" | 0.47" | 4-pin M12 Connector | 200 mA at 30V DC | Shielded | PNP Open Collector, NO | Output Status, Red | Less Than 1% | €302.73 | |
|
E57EAL12T111 | 1.18" | 0.47" | 6.6 Ft (2 M) Cable | 200 mA at 30V DC | Shielded | PNP Open Collector, NO | Output Status, Red | Less Than 1% | €221.49 | |
|
E57EAL4T111SN | 4/25" | 4/25" | M8 | 200 mA at 10-30V DC | Shielded | NO PNP Open Collector | Output On | Less Than 1% Sensing Range | €364.02 | |
 |
E57EAL5T110SP | 1/5" | 1/5" | 2 M Cable | 200 mA at 10-30V DC | Shielded | NO NPN Open Collector | Output On | Less Than 1% Sensing Range | €482.73 |
