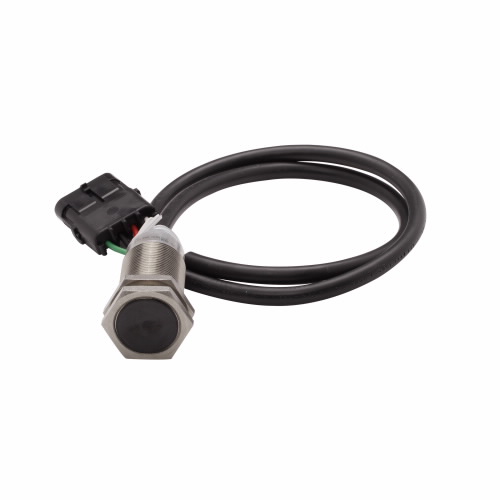

EATON E57-30JS-NBBW Inductive Proximity Sensor, Straight, Shielded, 32 In, 3.5A At 10-55 VDC, 4 Pin, 10-55 VDC
Get it by Tuesday, Sep 1
€473.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Actuator Function | Shielded |
| Cable Length | 32" |
| Connection | Weatherpack |
| Contact Configuration | Complementary PNP Open Collector |
| Contact Rating | 3.5A at 10-55V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 10-55V DC |
| Ip Rating | IP67 |
| Led Indicator | 360 AA Visibility |
| Length | 2.73" |
| Max. Amps | 3.5A |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Pins | 4 |
| Product Height | 1.18" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 1.18" |
| Protection Type | Transient, Power Protection On False Pulse |
| Temp. | -40°F to +158°F |
| Type | E57 |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3 |
| Ship length (cm) | 6.93 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Input Voltage | Max. Amps | Ip Rating | Min. Operating Temp. | Actuator Function | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57-08GE03-C1 | 1.81" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Extended Range Shielded | 140°F | €153.14 | |
 |
E57-08GBE03-C | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €208.16 | |
|
E57-08GE03-C | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €227.12 | |
 |
E57-08GE03-GDB | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €216.19 | |
 |
E57-08GE03-CDB | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €263.64 | |
|
E57-08GE03-C1DB | 2 4/5" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Extended Range Shielded | 140°F | €160.94 | |
|
E57-08GE03-C1NB | 2 2/5" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Extended Range Shielded | 140°F | €165.16 |
