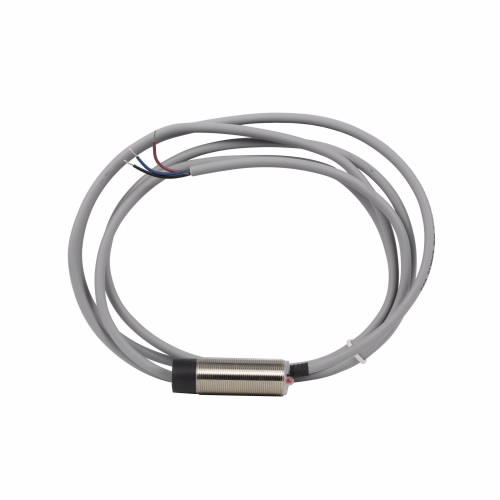

EATON E57-18GU08-G1 Inductive Global Proximity Sensor, 8 Mm Range, Straight, 18 Mm, Unshielded
Get it by Monday, Dec 22
€198.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 1.0% Sensing Range |
| Actuator Function | Unshielded |
| Cable Length | 79.2 ft. |
| Cable Material | PVC |
| Contact Configuration | PNP Open Collector, NC |
| Contact Rating | 100 mA at 10-30V DC |
| Enclosure Material | Brass |
| Input Voltage | 10-30V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output On |
| Length | 2.17" |
| Maximum Dc Current | 100 mA |
| Min. Operating Temp. | -13°F |
| Product Height | 0.71" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Short Circuit |
| Size | 18 |
| Temperature Rating | -13°F to +158°F |
| Type | E57 |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Cable Length | Number Of Wires | Min. Operating Temp. | Max. Operating Temp. | Number Of Pins | Cable Material | Cable Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57-08GE03-C1 | IP67, IP69K | 79.2 ft. | - | 32°F | 140°F | - | PVC | - | €153.14 | |
 |
E57-08GBE03-C | IP67, IP69K | 79.2 ft. | 3 | 32°F | 104°F | - | PVC | - | €208.16 | |
|
E57-08GE03-C | IP67, IP69K | 2m | 3 | 32°F | 104°F | - | PVC | - | €227.12 | |
 |
E57-08GE03-GDB | IP67, IP69K | - | 3 | 32°F | 104°F | 4 | - | - | €216.19 | |
 |
E57-08GE03-CDB | IP67, IP69K | - | 3 | 32°F | 104°F | 4 | - | - | €263.64 | |
|
E57-08GE03-C1DB | IP67, IP69K | - | - | 32°F | 140°F | - | - | - | €160.94 | |
|
E57-08GE03-C1NB | IP67, IP69K | - | - | 32°F | 140°F | - | - | - | €165.16 |
