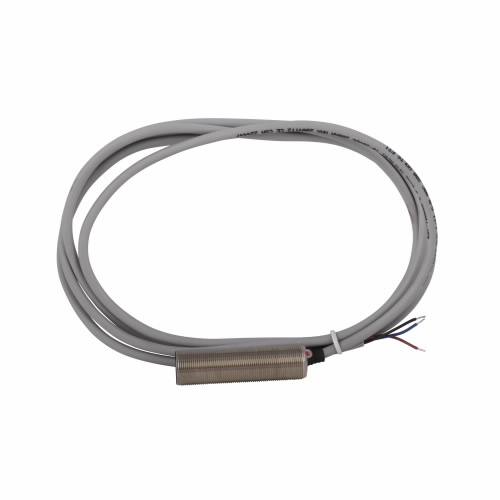

EATON E57-18GE08-C1DB Inductive Proximity Sensor, Straight, Dist. 8 Mm, 100 mA At 30 VDC, Shielded
Get it by Friday, Aug 28
€274.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 1% |
| Actuator Function | Shielded |
| Connection | 4-pin M12 Connector |
| Contact Configuration | NPN Open Collector, NC |
| Contact Rating | 100 mA at 30V DC |
| Enclosure Material | Brass |
| Input Voltage | 10-30V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.71" |
| Max. Amps | 100 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Product Height | 2.99" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Short Circuit Protected |
| Sensor Type | Inductive Proximity |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 7.59 |
| Ship length (cm) | 1.8 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Input Voltage | Max. Amps | Ip Rating | Min. Operating Temp. | Actuator Function | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57-08GE03-C1 | 1.81" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Extended Range Shielded | 140°F | €153.14 | |
 |
E57-08GBE03-C | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €208.16 | |
|
E57-08GE03-C | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €227.12 | |
 |
E57-08GE03-GDB | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €216.19 | |
 |
E57-08GE03-CDB | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €263.64 | |
|
E57-08GE03-C1DB | 2 4/5" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Extended Range Shielded | 140°F | €160.94 | |
|
E57-08GE03-C1NB | 2 2/5" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Extended Range Shielded | 140°F | €165.16 |
