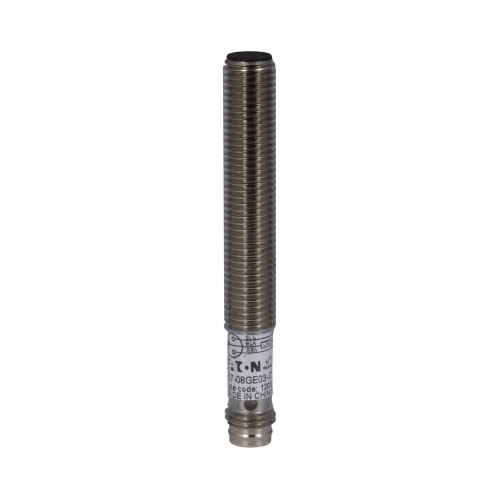

EATON E57-08GE03-CNB Inductive Proximity Sensor, 3 Mm Range, Straight, Unshielded, 3 Pin
Get it by Tuesday, Sep 1
€272.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 1.0% Sensing Range |
| Actuator Function | Unshielded |
| Connection | M8 |
| Contact Configuration | NPN Open Collector, NO |
| Contact Rating | 100 mA at 10-30V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 10-30V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output On |
| Length | 2 2/5" |
| Max. Amps | 100 mA |
| Max. Operating Temp. | 104°F |
| Min. Operating Temp. | 32°F |
| No. Of Pins | 3 |
| Product Height | 0.31" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.31" |
| Protection Type | Short Circuit |
| Type | Inductive Proximity Sensor |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 0.79 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Input Voltage | Max. Amps | Ip Rating | Min. Operating Temp. | Actuator Function | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57-08GE03-C1 | 1.81" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Extended Range Shielded | 140°F | €153.14 | |
 |
E57-08GBE03-C | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €208.16 | |
|
E57-08GE03-C | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €227.12 | |
 |
E57-08GE03-GDB | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €216.19 | |
 |
E57-08GE03-CDB | 0.31" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Unshielded | 104°F | €263.64 | |
|
E57-08GE03-C1DB | 2 4/5" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Extended Range Shielded | 140°F | €160.94 | |
|
E57-08GE03-C1NB | 2 2/5" | 0.31" | 10-30V DC | 100 mA | IP67, IP69K | 32°F | Extended Range Shielded | 140°F | €165.16 |
