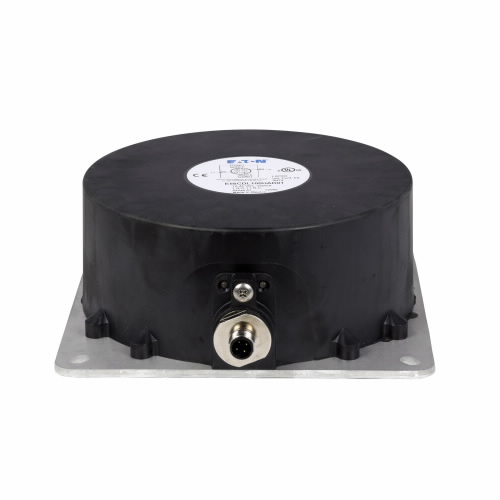

EATON E56CDL40A2B1 Inductive Proximity Sensor, 400 mA Max Ac, 3 Pin Mini Connector, Shielded
Get it by Friday, Dec 19
€1,111.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 2% |
| Actuator Function | Shielded |
| Connection | 3-Pin Mini Connector |
| Contact Configuration | 2-wire AC, NO/NC |
| Contact Rating | 400 mA at 250V AC |
| Enclosure Material | PPS |
| Input Voltage | 20-250V AC |
| Ip Rating | IP67 |
| Led Indicator | Output Status |
| Length | 4 2/5" |
| Max. Ac Current | 400 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Product Height | 2.9" |
| Product Name | Eaton E56 Pancake Inductive Proximity Sensor |
| Product Width | 6 1/2" |
| Protection Type | Short Circuit Protection With Auto Reset |
| Sensor Type | Inductive Proximity |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 11.18 |
| Ship width (cm) | 16.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Contact Rating | Number Of Pins | Ip Rating | Housing Material | Max. Operating Temp. | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
E56ADL40UAH | 300 mA at 42V DC | - | IP67 | - | 158°F | -13°F | €573.99 | RFQ
|
 |
E56ADL40SA | 300 mA | - | IP67 | - | 158°F | -13°F | €682.02 | |
|
E56ADL40UA | 300 mA at 42V DC | - | - | - | 158°F | -13°F | €506.23 | |
 |

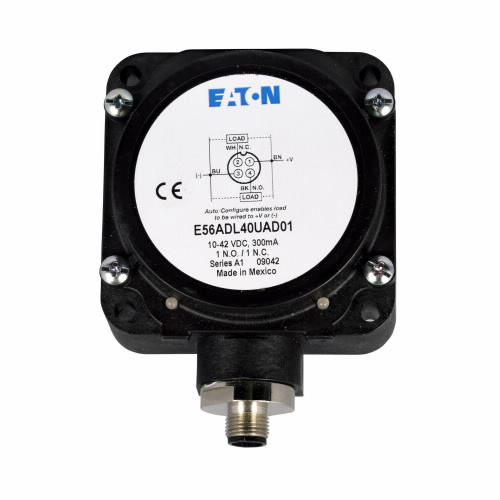

E56ADL40UAD01 | 300 mA | 4 | IP67 | - | 158°F | -13°F | €706.14 | |
|
E56ADL40SAE01 | 300 mA at 42V DC | - | IP67 | - | 158°F | -13°F | €538.03 | RFQ
|
|
E56ADL40UAE01 | 300 mA at 42V DC | - | IP67 | - | 158°F | -13°F | €723.68 | RFQ
|
|
E56ADL40SAH | 300 mA at 42V DC | - | IP67 | - | 158°F | -13°F | - | RFQ
|
