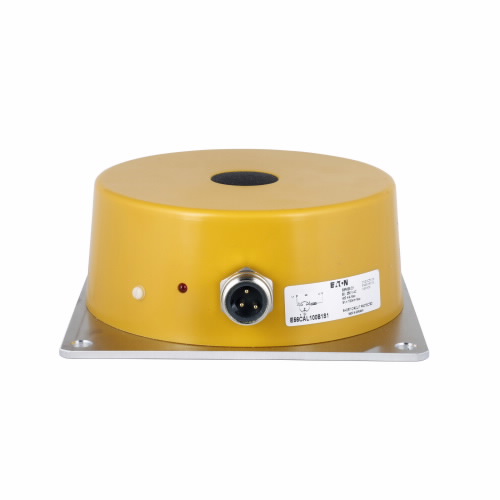

EATON E56CAL100B1S1 Inductive Proximity Sensor, 3.94 Inch Range, Straight, 400 mA At 250V, 3 Pin, 2-Wire Ac
Get it by Friday, Aug 28
€2,775.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 3% |
| Actuator Function | Unshielded |
| Baseplate Material | Aluminum |
| Connection | Mini |
| Contact Configuration | 2-wire AC, NO |
| Contact Rating | 400 mA at 250V AC |
| Housing Material | Polyphenylene Sulfide |
| Input Frequency | 45/65 Hz |
| Input Voltage | 90-260V |
| Ip Rating | IP67 |
| Led Indicator | Output Status |
| Length | 7.61" |
| Max. Ac Amps | 400 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Pins | 3 |
| Product Height | 2.66" |
| Product Name | Eaton E56 Pancake Inductive Proximity Sensor |
| Product Width | 6 3/4" |
| Protection Type | Short Circuit And Auto-Reset |
| Type | Inductive Proximity Pancake Sensor |
Shipping Info:
| Ship weight (kg) | 2.26 |
| Ship height (cm) | 6.76 |
| Ship length (cm) | 19.33 |
| Ship width (cm) | 17.15 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Input Voltage | Connection | Actuator Function | Accuracy | Contact Rating | No. Of Pins | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E56ADL40UAH | 3.13" | 1.54" | 10-42V DC | - | Unshielded | Less Than 2% | 300 mA at 42V DC | - | €573.99 | |
 |
E56ADL40SA | 1.54" | 3.87" | 10-42V DC | Screw Terminal | Shielded | Less Than 3% | 300 mA | - | €682.02 | |
 |
E56ADL40UA | 1 1/2" | 4" | 10-42V DC | Screw Terminal | Unshielded | Less Than 2% | 300 mA at 42V DC | - | €506.23 | |
 |
E56ADL40UAD01 | 1.54" | 4 8/25" | 10-42V DC | M12 | Unshielded | Less Than 3% | 300 mA | 4 | €706.14 | |
|
E56ADL40SAE01 | 3.13" | 1.54" | 10-42V DC | 4-pin Mini Connector | Shielded | Less Than 2% | 300 mA at 42V DC | - | €538.03 | |
|
E56ADL40UAE01 | 3.13" | 1.54" | 10-42V DC | 4-pin Mini Connector | Unshielded | Less Than 2% | 300 mA at 42V DC | - | €723.68 | |
|
E56ADL40SAH | 3.13" | 1.54" | 10-42V DC | - | Shielded | Less Than 2% | 300 mA at 42V DC | - | - | RFQ
|
