EATON E53KAL12T110E Tubular Capacitive Proximity Sensor, Dist. 8 Mm, 300 mA Max Dc, 8 Ft. Cable, Unshielded
Get it by Tuesday, Aug 25
€567.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 5% |
| Actuator Function | Unshielded |
| Body Material | Polyoxymethylene |
| Cable Material | PVC |
| Connection | 8 Ft (2.4 M) Cable |
| Contact Configuration | NO NPN Open Collector |
| Contact Rating | 300 MA Solid State Output |
| Input Voltage | 10-30V DC |
| Ip Rating | IP65 |
| Led Indicator | Output Status |
| Length | 0.47" |
| Max. Amps | 300 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Mounting Nuts Material | Nylon 66 |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3S, NEMA 4 |
| Product Height | 3.15" |
| Product Name | Eaton E53 Tubular Capacitive Proximity Sensor |
| Product Width | 0.47" |
| Protection Type | Short Circuit And Reverse Polarity |
| Sensor Type | Capacitive Proximity |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 8 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Input Voltage | Contact Rating | Actuator Function | Contact Configuration | Led Indicator | Sensor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E53KAL12T110 | 3.15" | 0.47" | 10-30V DC | 300 mA at 30V DC | Shielded | NPN Open Collector | Output Status, Red | Inductive Proximity | €453.33 | |
 |
E53KAL18A2 | 0.71" | 0.71" | 20-250V | 300 MA Solid State Output | Shielded | 2-wire AC, NO | Output On Output | - | €658.22 | |
 |
E53KAL18A2SA | 0.71" | 0.71" | 20-250V | 300 MA Solid State Output | Shielded | 2-wire AC, NO | Output On Output | - | €960.09 | |
 |
E53KAL18A2S8 | 0.71" | 5 3/4" | 20-250V AC | 300 MA Solid State Output | Shielded | 2-wire AC, NO | Output Status | Capacitive Proximity | €1,091.93 | |
|
E53KAL18T111 | 3.15" | 0.71" | 10-30V DC | 300 MA Solid State Output | Shielded | NO PNP Open Collector | Output Status | Capacitive Proximity | €704.32 | |
 |

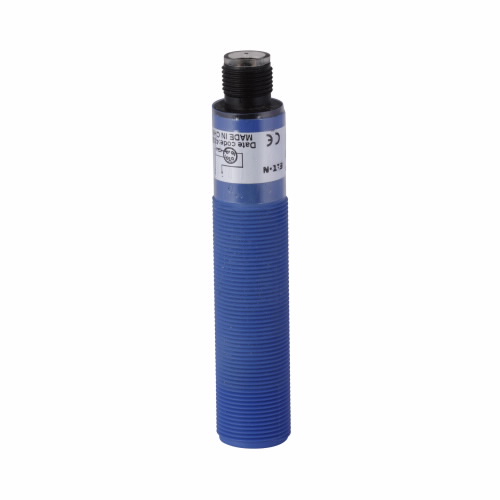

E53KAL18T110SD | 3.74" | 0.71" | 10-30V DC | 300 MA Solid State Output | Shielded | NO NPN Open Collector | Output Status | Capacitive Proximity | €614.69 | |
|
E53KAL18T110E | 3.15" | 0.71" | 10-30V DC | 300 MA Solid State Output | Unshielded | NO NPN Open Collector | Output Status | Capacitive Proximity | €567.08 |
