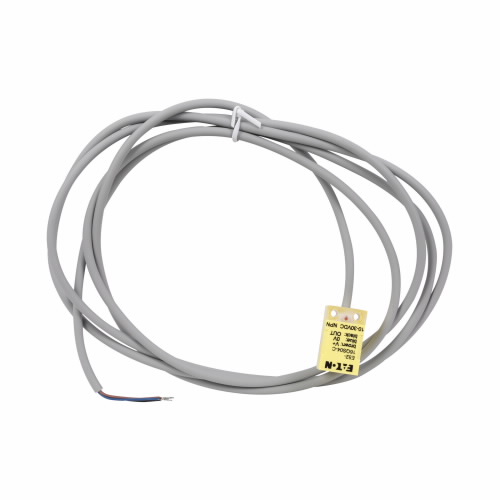

EATON E52-16QS04-C Inductive Proximity Sensor, Rectangular, Shielded, Led Indicator, 6.6 Ft., 100 Ma, Pvc
Get it by Tuesday, Sep 1
€186.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Actuator Function | Shielded |
| Cable Length | 2m |
| Cable Material | PVC |
| Contact Configuration | NO NPN Open Collector |
| Contact Rating | 100 mA |
| Enclosure Material | PBT |
| Input Voltage | 12-30V DC |
| Led Indicator | LED Indicator |
| Length | 1.15" |
| Max. Amps | 100 mA |
| Max. Operating Temp. | 130°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 2, NEMA 3, NEMA 3S, NEMA 4 |
| Product Height | 0.66" |
| Product Name | Eaton E52 Inductive Proximity Sensor |
| Product Width | 0.69" |
| Protection Type | Short Circuit |
| Series | E52 |
| Type | Rectangular |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 1.68 |
| Ship length (cm) | 2.92 |
| Ship width (cm) | 1.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Input Voltage | Max. Amps | Connection | Min. Operating Temp. | Max. Operating Temp. | Actuator Function | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E52-16QS04-B | 0.66" | 0.69" | 12-30V DC | 100 mA | - | -13°F | 130°F | Shielded | €187.91 | |
 |
E52-16QS04-B1 | 1.15" | 0.66" | 12-30V DC | 100 mA | 6.6 Ft (2 M) Cable | 14°F | 131°F | Shielded | €168.86 | |
 |
E52-16QS04-C05 | 1.15" | 0.66" | 12-30V DC | 100 mA | 16 Ft (5 M) Cable | 14°F | 131°F | Shielded | €210.78 | |
 |
E52-18RU04-B1 | 0.39" | 0.71" | 10-30V DC | - | - | -13°F | 130°F | Unshielded | €224.67 | |
|
E52-18RU04-C1 | 1.18" | 0.39" | 10-30V DC | 100 mA | 6.6 Ft (2 M) Cable | 14°F | 131°F | Unshielded | €316.14 | |
|
E52-18RU04-BN | 1.18" | 0.39" | 10-30V DC | 100 mA | 3-Pin M8 Connector | 14°F | 131°F | Unshielded | €250.87 | |
|
E52-16QS04-C1 | 1.15" | 0.66" | 12-30V DC | 100 mA | 6.6 Ft (2 M) Cable | 14°F | 131°F | Shielded | €169.28 |
