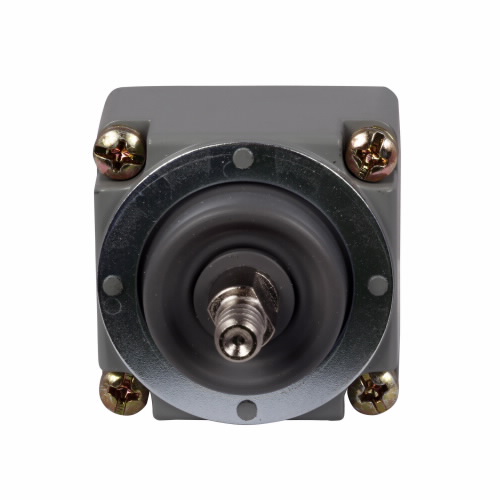

EATON E50DW2 Limit Switch Head, CW and CCW
Item: BJ2ZVLModel: E50DW2Cross Ref: 49C030
7 In Stock
Ships within 2 days via
10.00% off
€318.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Action | Momentary |
| Actuator Location | Top |
| Actuator Style | Wobble Stick |
| Actuator Type | Wobble Head, Spring Return |
| Arm/operator Length | 1.1" |
| Compatible With Brand | Eaton |
| Compatible With Grainger Part Number | 49A973 |
| Compatible With Manufacturer Model Number | E50SA |
| Compatible With Series | E50 Series |
| Differential Travel | 15° |
| Directional Movement | Omnidirectional |
| Display Qty | 1 |
| Enclosure Material | Die Cast Zinc |
| Height | 1.78" |
| Includes Actuator | Actuator Not Included |
| Ip Rating | IP67 |
| Length | 1.85" |
| Manufacturer Warranty Length | 1 yr. |
| Material | Steel |
| Max. Operating Temp. | 201°F |
| Min. Operating Temp. | 14°F |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Operating Force | 0.67N |
| Operating Torque | 2 lbs.-in. |
| Overall Depth | 1.85" |
| Overall Height | 1.78" |
| Overall Width | 1.54" |
| Overtravel | 10° |
| Pretravel | 5° |
| Reset Travel | 6° |
| Series | E50 Series |
| Total Travel | 15° |
| Warranty | 1 yr. |
| Width | 1.54" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 4.52 |
| Ship length (cm) | 4.7 |
| Ship width (cm) | 3.91 |
| Country of Origin | US |
Product Variants
| Model | Ip Rating | Actuator Style | Contact Form | Ac Contact Rating | Electrical Connection | Height | Dc Contact Rating | Boot Sealed Actuator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E50AW26P | IP67, IP69K | Wobble Stick | - | - | - | 5.38" | - | - | €857.30 | |
| E50AH16P | IP67, IP69K | Plunger | 1NO/1NC | 10A @ 240V | 8 ft. Cable | 4.67" | 1A @ 250V | Boot Included | €890.12 | |
| E50AL16P | IP67, IP69K | Rotary Lever | 1NO/1NC | 10A @ 240V | 8 ft. Cable | 4.67" | 1A @ 250V | Boot Included | €714.20 | |
| E50BL16P | IP67, IP69K | Rotary Lever | 2NO/2NC | 10A @ 240V | 8 ft. Cable | 4.67" | 1A @ 125V | Boot Included | €1,073.15 | |
| E50BR16P | IP67, IP69K | Rotary Lever | 2NO/2NC | 10A @ 240V | 8 ft. Cable | 4.67" | 1A @ 250V | Boot Included | €914.27 | |
| E50AW16P | IP67, IP69K | Wobble Stick | - | - | - | 5.38" | - | - | €825.04 | |
| E50BW16P | IP67, IP69K | Wobble Stick | - | - | - | 5.38" | - | - | €1,150.70 |
