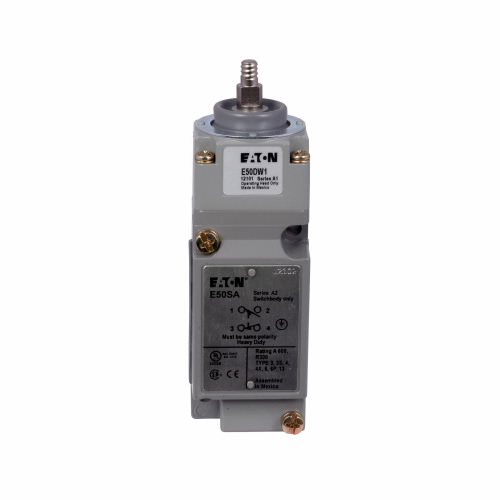

EATON E50BW1 Heavy Duty Limit Switch, 2NC/2NO, 10A, 600V, 1.54 Inch Actuator Lg, Rotary, Top
Item: BJ2ZUHModel: E50BW1Cross Ref: 49A989
7 In Stock
Ships within 2 days via
10.00% off
€789.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Action | Momentary |
| Actuator Location | Top |
| Actuator Style | Wobble Stick |
| Arm/operator Length | 1.54" |
| Connection | Screw Terminal |
| Contact Configuration | 2 NO, 2 NC |
| Contact Rating | 10A At 240V AC, 1A At 250V DC |
| Differential Travel | 15° |
| Directional Movement | Omnidirectional |
| Display Qty | 1 |
| Enclosure Material | Die Cast Zinc |
| Height | 4.93" |
| Includes Actuator | Actuator Not Included |
| Ip Rating | IP67 |
| Length | 1.54" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Ac Amps | 10A |
| Max. Dc Amps | 1A |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | 14°F |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Operating Force | 2 lbf. |
| Operating Torque | 2 lbs.-in. |
| Overall Depth | 1.54" |
| Overall Height | 4.93" |
| Overall Width | 1.78" |
| Pretravel | 5° |
| Reset Travel | 6° |
| Roller Position | Top |
| Series | E50 Series |
| Standards | Ce, Csa, Ul Listed |
| Switch Type | Wobble stick |
| Total Travel | 15° |
| Warranty | 1 yr. |
| Width | 1.78" |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 12.52 |
| Ship length (cm) | 3.91 |
| Ship width (cm) | 4.52 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Actuator Style | Contact Form | Ac Contact Rating | Electrical Connection | Height | Dc Contact Rating | Boot Sealed Actuator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E50AH16P | IP67, IP69K | Plunger | 1NO/1NC | 10A @ 240V | 8 ft. Cable | 4.67" | 1A @ 250V | Boot Included | €890.12 | |
 |
E50AL1 | IP67 | Rotary Lever | 1NO/1NC | 10A @ 240V | Screw Terminals | 2.46" | 1A @ 250V | No Boot Included | €796.00 | |
|
E50AL16P | IP67, IP69K | Rotary Lever | 1NO/1NC | 10A @ 240V | 8 ft. Cable | 4.67" | 1A @ 250V | Boot Included | €714.20 | |
|
E50AH1 | IP67 | Plunger | 1NO/1NC | 10A @ 240V | Screw Terminals | 4.22" | 1A @ 250V | No Boot Included | €883.35 | |
|
E50AM16P | IP67, IP69K | Rotary Lever | 1NO/1NC | 10A @ 240V | 8 ft. Cable | 4.67" | 1A @ 125V | Boot Included | €801.59 | |
 |
E50AM1 | IP67 | Rotary Lever | 1NO/1NC | 10A @ 240V | Screw Terminals | 2.46" | 1A @ 250V | No Boot Included | €693.52 | |
|
E50AR1 | IP67 | Rotary Lever | 1NO/1NC | 10A @ 240V | Screw Terminals | 2.46" | 1A @ 250V | No Boot Included | €618.62 |
