EATON E50BS3 E50 Nema Heavy Duty Plug-In Limit Switch, Within 0.003, Screw Terminals, 10A At 240 Vac | BJ2ZUB 49A984

EATON E50BS3 Heavy Duty Limit Switch, 2NC/2NO, 10A, 600V, 1.78 Inch Actuator Lg, Linear, Side

Item: BJ2ZUBModel: E50BS3Cross Ref: 49A984
7 In Stock

Ships within 2 days via

€853.06
10.00% off
€767.75 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Limit Switch
Ac Contact Rating 10A @ 240V
Accuracy Within 0.003
Action Momentary
Actuator Length 1.78"
Actuator Location Side
Actuator Style Push Roller Plunger
Actuator Type Roller plunger
Arm Adjustability Adjustable
Arm Depth 0.36"
Arm Length - Maximum 0.36"
Arm Length - Minimum 4/25"
Arm Material Metal
Arm Width 0.36"
Body Configuration Plug In
Body Depth 1.78"
Body Height 3.13"
Body Material Zinc
Body Material Type Metallic
Body Width 1.54"
Boot Sealed Actuator No Boot Included
Connection Screw Terminal
Contact Configuration 2 NO, 2 NC
Contact Form 2NO/2NC
Contact Rating 10A At 240V AC, 1A At 250V DC
Dc Contact Rating 1A @ 250V
Differential Travel 1/4"
Directional Movement Linear
Display Qty 1
Electrical Connection Screw Terminals
Enclosure Material Die Cast Zinc
Height 1"
Includes Actuator Actuator Included
Ip Rating IP67
Lamp Type No Lamp Module Included
Length 4"
Manufacturer Warranty Length 1 yr.
Max. Ac Amps 10A
Max. Dc Amps 1A
Max. Operating Temp. 201°F
Min. Operating Temp. 14°F
Mounting Hole Diameter - New 1/5"
Mounting Hole Horizontal Center To Center Distance 59 mm
Mounting Hole Vertical Center To Center Distance 29 mm
Mounting Style Surface
Nema Enclosure Rating NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
Notes Roller Can Be Converted In The Field Between Horizontal And Vertical
Number Of Mounting Holes 2
Operating Force - Maximum 4 lbf.
Operating Force - Minimum 8 ozf
Operating Torque - Maximum 18 lbs.-in.
Operating Torque - Minimum 4 lbs.-in.
Overall Depth 4"
Overall Height 1"
Overall Width 3"
Overtravel - New 1/4"
Plunger Adjustability Fixed
Pretravel 0.03"
Reset Travel 0.03"
Roller Adjustability Fixed
Roller Diameter 4/25"
Roller Material Nylon
Roller Position Same Side
Roller Width 4/25"
Series E50 Series
Standards Ce, Csa, Ul Listed
Switch Type Side push roller
Total Travel 1/4"
Warranty 1 yr.
Width 3"

Shipping Info:

Ship weight (kg) 0.54
Ship height (cm)2.54
Ship length (cm)10.16
Ship width (cm)7.62
Country of OriginUS

Product Variants

ProductModelIp RatingActuator StyleContact FormAc Contact RatingElectrical ConnectionHeightDc Contact RatingBoot Sealed ActuatorPrice
EATON E50AH16P E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 8 Ft. Cable, 10A At 240 Vac | BJ2ZHN 49C004 E50AH16PIP67, IP69KPlunger1NO/1NC10A @ 240V8 ft. Cable4.67"1A @ 250VBoot Included€890.12

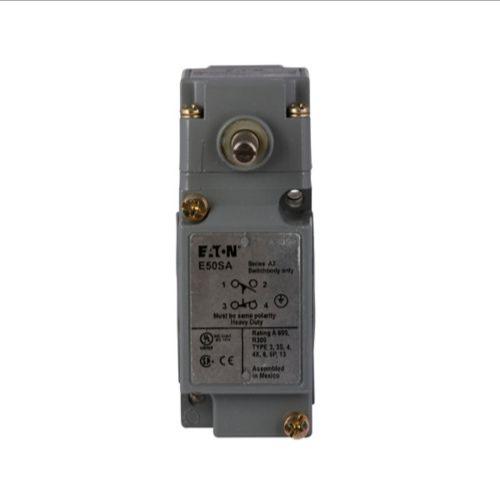

EATON E50AL1 E50 Nema Heavy Duty Plug-In Limit Switch, Assembly, Screw Terminals, 10A At 240 Vac | BJ2ZHQ 49A922 E50AL1IP67Rotary Lever1NO/1NC10A @ 240VScrew Terminals2.46"1A @ 250VNo Boot Included€796.00
EATON E50AL16P E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 8 Ft. Cable, 10A At 240 Vac | BJ2ZHU 49A993 E50AL16PIP67, IP69KRotary Lever1NO/1NC10A @ 240V8 ft. Cable4.67"1A @ 250VBoot Included€714.20
EATON E50AH1 E50 Nema Heavy Duty Plug-In Limit Switch, Screw Terminals, 10A At 240 Vac, 1A At 250 Vdc | BJ2ZHX 49A921 E50AH1IP67Plunger1NO/1NC10A @ 240VScrew Terminals4.22"1A @ 250VNo Boot Included€883.35
EATON E50AM16P E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 8 Ft.Cable, 10A At 240 Vac | BJ2ZKG 49A994 E50AM16PIP67, IP69KRotary Lever1NO/1NC10A @ 240V8 ft. Cable4.67"1A @ 125VBoot Included€801.59

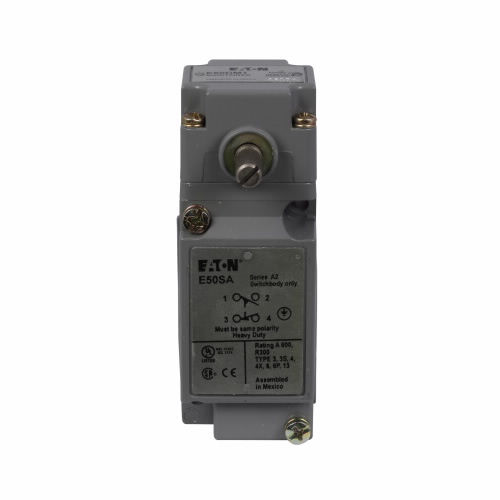

EATON E50AM1 E50 Nema Heavy Duty Plug-In Limit Switch, Assembly, Screw Terminals, 10Aat240 Vac | BJ2ZKX 49A923 E50AM1IP67Rotary Lever1NO/1NC10A @ 240VScrew Terminals2.46"1A @ 250VNo Boot Included€693.52
EATON E50AR1 E50 Nema Heavy Duty Plug-In Limit Switch, Assembly, Screw Terminals, 10A At 240 Vac | BJ2ZMX 49A924 E50AR1IP67Rotary Lever1NO/1NC10A @ 240VScrew Terminals2.46"1A @ 250VNo Boot Included€618.62
