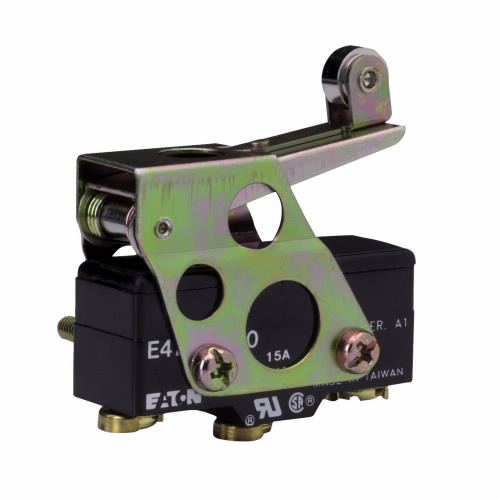

EATON E47BMS40 Basic Precision Limit Switch, 15A, Adjustable Roller Actuator, SPDT Contact, 1P
Get it by Tuesday, Aug 25
€43.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Connection | Screw Terminal |
| Contact Configuration | SPDT |
| Contact Rating | 15A At 125V AC / 15A At 14V DC |
| Enclosure Material | Phenolic |
| Height | 1.94" |
| Length | 3/4" |
| Max. Amps | 15A |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1 |
| Notes | Bottom Facing M4 X 0.7 (8-32) Terminal Screws With Cup Washers Will Accept 22 -12 AWG (2.5 Sq. mm Maximum) |
| Switch Type | Adjustable roller |
| Type | E47 |
| Width | 2.11" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 5.36 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Max. Amps | Enclosure Material | Min. Operating Temp. | Max. Operating Temp. | Contact Configuration | Nema Enclosure Rating | Switch Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E47BCC07P4 | 1/2" | 5A | Die Cast Aluminum | 14°F | 158°F | SPDT | NEMA 13, NEMA 4, NEMA 6 | Roller plunger | €253.81 | |
 |
E47BCC05 | - | - | - | - | - | - | - | - | €347.59 | |
 |
E47BCC06 | 0.69" | 5A | Die Cast Aluminum | 14°F | 158°F | 1-SPDT (form C) | NEMA 13, NEMA 4, NEMA 6 | - | €355.58 | |
 |
E47BCC06P4 | 2 1/2" | 5A | Die Cast Aluminum | 14°F | 158°F | SPDT | NEMA 13, NEMA 4, NEMA 6 | Sealed plunger | €350.95 | |
 |
E47BCC07 | 0.69" | 5A | Die Cast Aluminum | 14°F | 158°F | 1-SPDT (form C) | NEMA 13, NEMA 4, NEMA 6 | - | €347.59 | |
|
E47BCC05P4 | 2.13" | 5A | Die Cast Aluminum | 14°F | 158°F | SPDT | NEMA 13, NEMA 4, NEMA 6 | Pin plunger | €203.60 | |
 |
E47BCC08 | 0.69" | 5A | Die Cast Aluminum | 14°F | 158°F | 1-SPDT (form C) | NEMA 13, NEMA 4, NEMA 6 | - | €355.58 |
