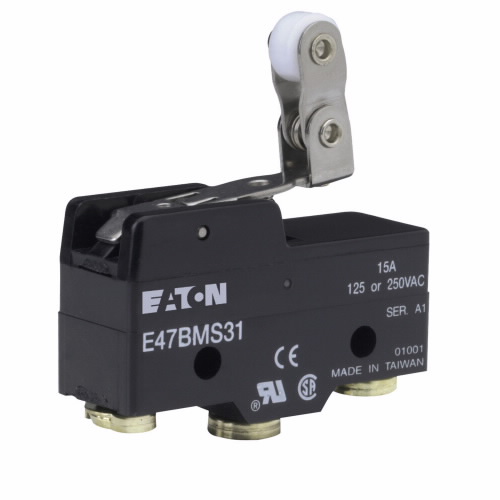

EATON E47BMS31 Limit Switch, 15A, One Way Roller Actuator, Spdt Contact, 1P
Get it by Friday, Dec 19
€43.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Connection | Screw Terminal |
| Contact Configuration | SPDT |
| Contact Rating | 15A At 125V AC / 15A At 14V DC |
| Enclosure Material | Phenolic |
| Height | 1.94" |
| Length | 0.69" |
| Max. Ac Amps | 15A |
| Max. Dc Amps | 15A |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1 |
| Notes | Bottom Facing M4 X 0.7 (8-32) Terminal Screws With Cup Washers Will Accept 22 -12 AWG (2.5 Sq. mm Maximum) |
| Switch Type | One way roller |
| Type | E47 |
| Warranty | 1 yr. |
| Weight | 0.0813 lbs. |
| Width | 2 2/25" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 1.75 |
| Ship width (cm) | 5.28 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Cable Length | Ip Rating | Type | Price | |
|---|---|---|---|---|---|---|---|
 |
E47BCC07P4 | 1/2" | - | IP67 | E47 | €253.81 | |
 |
E47BCC05 | - | - | - | - | €347.59 | |
 |
E47BCC06 | 0.69" | 117.6 ft. | IP67 | E47 | €355.58 | |
 |
E47BCC06P4 | 2 1/2" | - | IP67 | E47 | €350.95 | |
 |
E47BCC07 | 0.69" | 117.6 ft. | IP67 | E47 | €347.59 | |
|
E47BCC05P4 | 2.13" | - | IP67 | E47 | €203.60 | |
 |
E47BCC08 | 0.69" | 117.6 ft. | IP67 | E47 | €355.58 |
