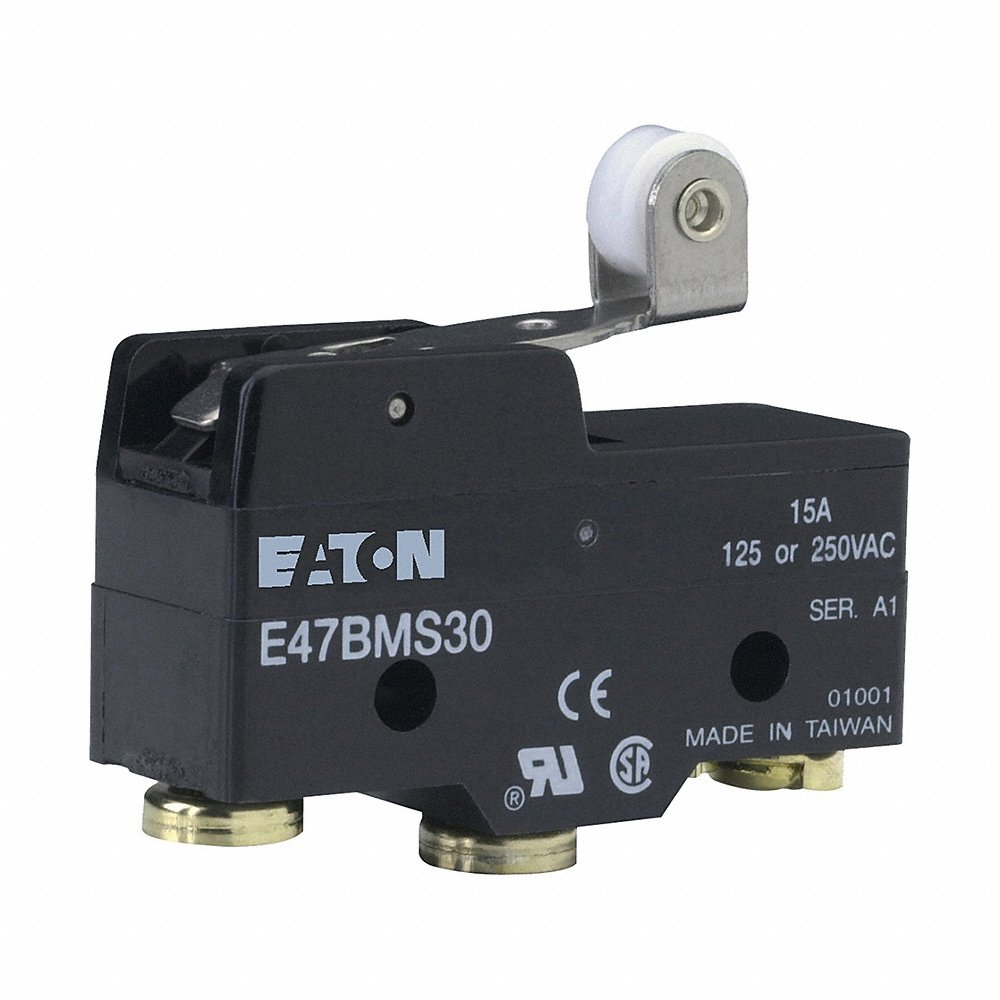

EATON E47BMS30 Basic Precision Limit Switch, 250 VAC, 30 VDC, 6/15 A
Item: BJ2ZBVModel: E47BMS30Cross Ref: 831V04
7 In Stock
Ships within 2 days via
5.00% off
€67.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Actuator Type | Roller lever |
| Connection | Screw Terminal |
| Contact Configuration | 1-SPDT (form C) |
| Contact Rating | 15A At 250V AC, 6A At 30V DC |
| Enclosure Material | Phenolic |
| Height | 1.78" |
| Length | 1.94" |
| Max. Amps | 15A |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1 |
| Operating Speed | 0.01 mm/sec. to 1 mps |
| Series | E47 Series |
| Type | E47 |
| Width | 0.69" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 1.78 |
| Ship width (cm) | 4.32 |
| Country of Origin | TW |
Product Variants
| Product | Model | Height | Max. Amps | Enclosure Material | Min. Operating Temp. | Max. Operating Temp. | Contact Configuration | Nema Enclosure Rating | Switch Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E47BCC07P4 | 1/2" | 5A | Die Cast Aluminum | 14°F | 158°F | SPDT | NEMA 13, NEMA 4, NEMA 6 | Roller plunger | €253.81 | |
 |
E47BCC05 | - | - | - | - | - | - | - | - | €347.59 | |
 |
E47BCC06 | 0.69" | 5A | Die Cast Aluminum | 14°F | 158°F | 1-SPDT (form C) | NEMA 13, NEMA 4, NEMA 6 | - | €355.58 | |
 |
E47BCC06P4 | 2 1/2" | 5A | Die Cast Aluminum | 14°F | 158°F | SPDT | NEMA 13, NEMA 4, NEMA 6 | Sealed plunger | €350.95 | |
 |
E47BCC07 | 0.69" | 5A | Die Cast Aluminum | 14°F | 158°F | 1-SPDT (form C) | NEMA 13, NEMA 4, NEMA 6 | - | €347.59 | |
|
E47BCC05P4 | 2.13" | 5A | Die Cast Aluminum | 14°F | 158°F | SPDT | NEMA 13, NEMA 4, NEMA 6 | Pin plunger | €203.60 | |
 |
E47BCC08 | 0.69" | 5A | Die Cast Aluminum | 14°F | 158°F | 1-SPDT (form C) | NEMA 13, NEMA 4, NEMA 6 | - | €355.58 |
