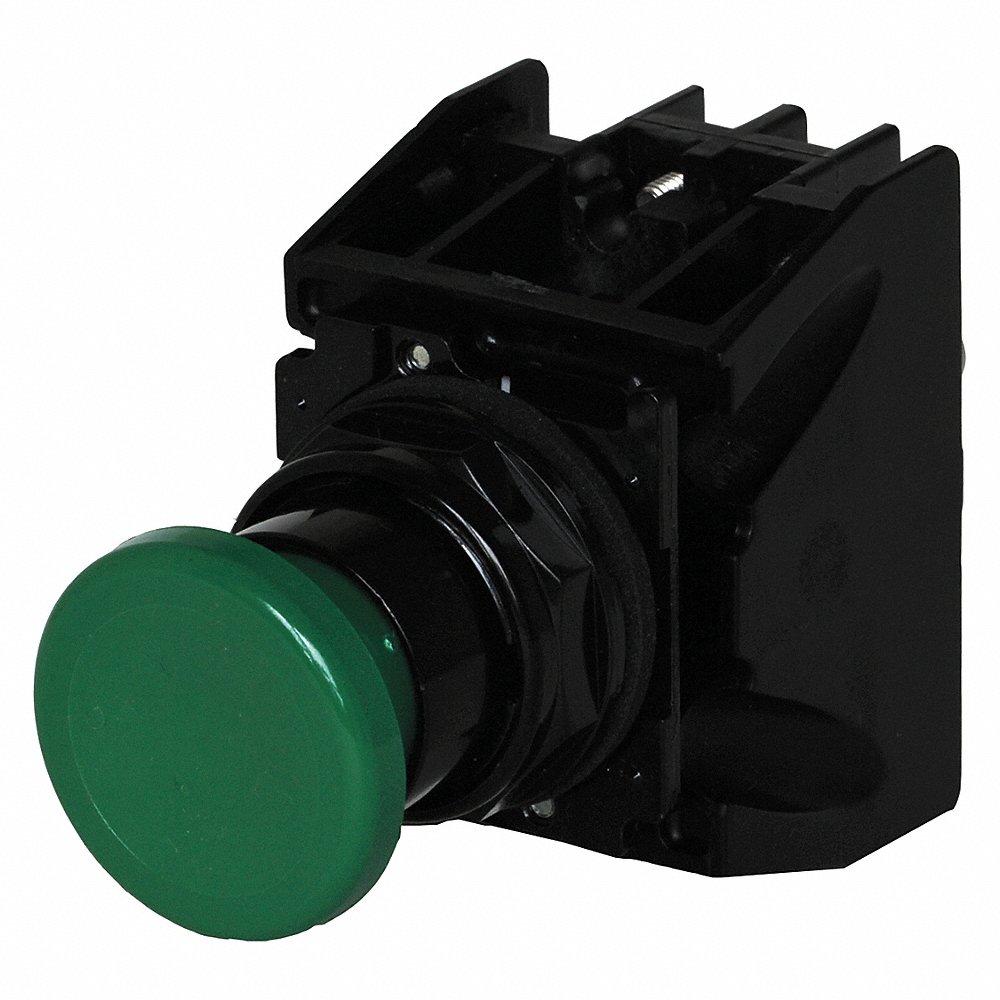

EATON E34EX710G Hazardous Location Push Button With Contacts, Green, 30 mm Size, 1 NC/1 NO, Momentary
Item: CJ2KLUModel: E34EX710GCross Ref: 31HK87
7 In Stock
Ships within 2 days via
10.00% off
€374.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Bezel Material | Zinc Die Cast |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 2.5A @ 250V |
| Features | Drainage Holes, Factory Sealed, Grounding Nibs |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Head Material | Epoxy Coated Metal |
| Head/lens Color | Green |
| Includes | Drainage Holes To Prevent Moisture Build-Up, Grounding Nibs Designed To Bite Through Most Enclosure Coatings |
| Ip Rating | IP65 |
| Manufacturer Warranty Length | 1 yr. |
| Mechanical Operating Durability | 1 x 10^7 |
| Mushroom Head Diameter | 40 mm |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 32°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Corrosion Resistant, Oil And Grease Resistant |
| Series | E34 Series |
| Terminal Connection | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Contact Form | Size | Bezel Material | Type | Contact Configuration | Diameter | Head Material | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E34EX706B | 1NO/1NC | - | Zinc Die Cast | Pushbutton | 1 NC, 1 NO | - | Epoxy Coated Metal | IP65 | €329.97 | |
| E34EX706G | 1NO/1NC | - | Zinc Die Cast | Pushbutton | 1 NC, 1 NO | - | Epoxy Coated Metal | IP65 | €297.79 | |
| E34EX706R | 1NO/1NC | - | Zinc Die Cast | Pushbutton | 1 NC, 1 NO | - | Epoxy Coated Metal | IP65 | €304.55 | |
| E34EX707G | 2NO/2NC | - | Zinc Die Cast | Pushbutton | 2 NO, 2 NC | - | Epoxy Coated Metal | IP65 | €568.92 | |
| E34EX710R | 1NO/1NC | 40 mm | Zinc Die Cast | Pushbutton | 1 NC, 1 NO | 1 1/2" | Epoxy Coated Metal | IP65 | €412.82 | |
| E34EX708B | 1NO/1NC | - | Zinc Die Cast | 30.5 mm, Class I Division 2 | 1 NC, 1 NO | - | Epoxy Coated Metal | IP65 | €466.65 | |
| E34EX708G | 1NO/1NC | - | Zinc Die Cast | 30.5 mm, Class I Division 2 | 1 NC, 1 NO | - | Epoxy Coated Metal | IP65 | €322.98 |
