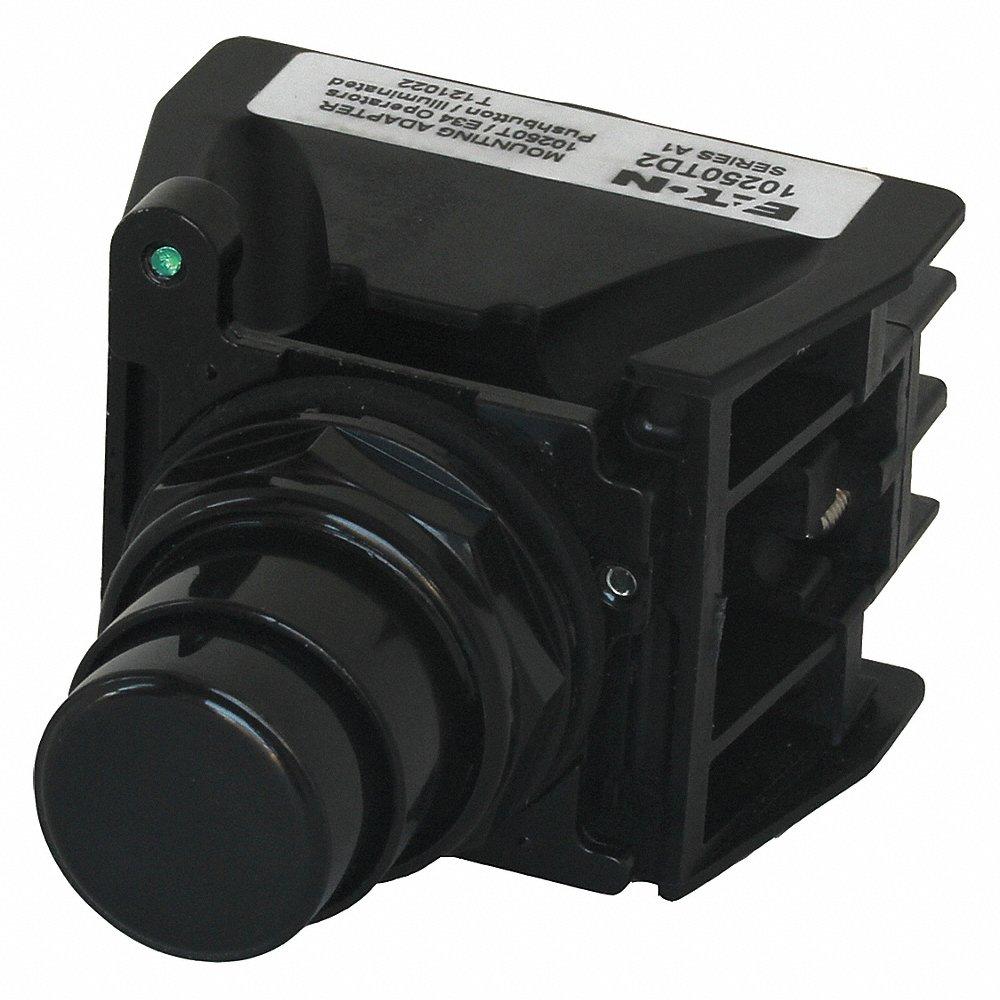

EATON E34EX709B Hazardous Location Push Button With Contacts, Black, 30 mm Size, 2 NO/2 NC, Momentary
Item: CJ2KLRModel: E34EX709BCross Ref: 31HK76
7 In Stock
Ships within 2 days via
5.00% off
€515.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Bezel Material | Zinc Die Cast |
| Contact Form | 2NO/2NC |
| Dc Contact Rating | 2.5A @ 250V |
| Features | Drainage Holes, Factory Sealed, Grounding Nibs |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Head Material | Epoxy Coated Metal |
| Head/lens Color | Black |
| Included | Drainage Holes To Prevent Moisture Build-Up, Grounding Nibs Designed To Bite Through Most Enclosure Coatings |
| Ip Rating | IP65 |
| Max. Operating Temp. | 140°F |
| Mechanical Operating Durability | 1 x 10^7 |
| Min. Operating Temp. | 32°F |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Panel Mounting Hole Dia. | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant, Oil And Grease Resistant |
| Series | E34 Series |
| Terminal Connection | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Bezel Material | Head/lens Color | Push Button Style | Contact Form | Dc Contact Rating | Type | Height | Actuator Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E34EX706B | Zinc Die Cast | Black | Flush | 1NO/1NC | 2.5A @ 250V | Push Button | 2" | Black | €329.97 | |
| E34EX706G | Zinc Die Cast | Green | Flush | 1NO/1NC | 2.5A @ 250V | Push Button | 2" | Green | €297.79 | |
| E34EX706R | Zinc Die Cast | Red | Flush | 1NO/1NC | 2.5A @ 250V | Push Button | 2" | Red | €304.55 | |
| E34EX707G | Zinc Die Cast | Green | Flush | 2NO/2NC | 2.5A @ 250V | Push Button | 2" | Green | €568.92 | |
| E34EX710R | Zinc Die Cast | Red | Mushroom Head | 1NO/1NC | 2.5A @ 250V | Push Button | 1" | Red | €412.82 | |
| E34EX708B | Zinc Die Cast | Black | Extended | 1NO/1NC | 2.5A @ 250V | 30.5 mm, Class I Division 2 | 1" | Black | €466.65 | |
| E34EX708G | Zinc Die Cast | Green | Extended | 1NO/1NC | 2.5A @ 250V | 30.5 mm, Class I Division 2 | 1" | Green | €322.98 |
