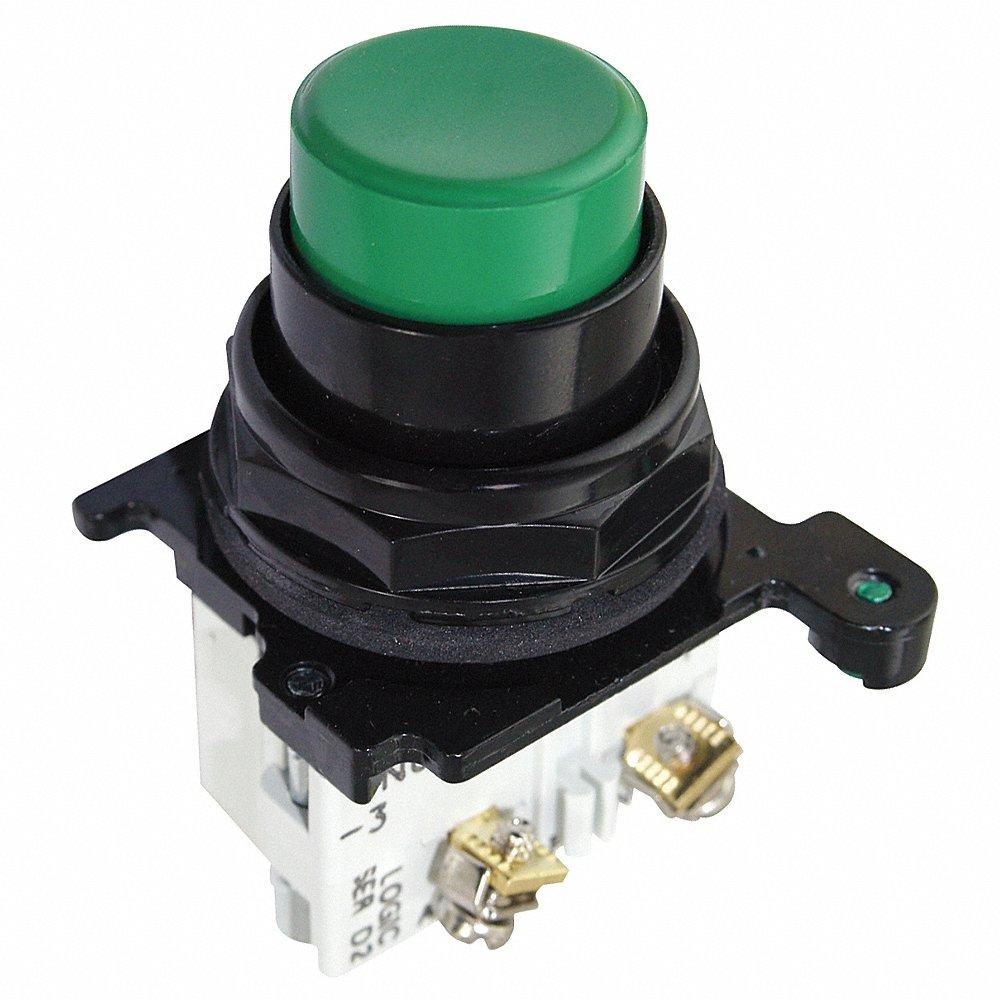

EATON E34EB3-51X Non Illuminated Push Button, 30mm Size, Momentary Push, Green, 1NC
Item: CJ2XJBModel: E34EB3-51XCross Ref: 39R291
7 In Stock
Ships within 2 days via
5.00% off
€184.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Basic Material | Metal |
| Bezel Material | Epoxy Coated Zinc Die Cast |
| Contact Form | 1NC |
| Dc Contact Rating | 2.5A @ 250V |
| Display Qty | 1 |
| Features | Passed A 600 Hour Salt Spray Test |
| Head Material | Epoxy Coated Metal |
| Head/lens Color | Green |
| Ip Rating | IP65 |
| Legend | No Legend |
| Max. Operating Temp. | 150°F |
| Max. Operator Voltage Rating | 120V AC/DC |
| Mechanical Operating Durability | 1 x 10^7 |
| Min. Operating Temp. | 1°F |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Panel Mounting Hole Dia. | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Oil And Grease Resistant, Watertight |
| Series | E34 Series |
| Terminal Connection | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Bezel Material | Head/lens Color | Push Button Style | Max. Operating Temp. | Min. Operating Temp. | Contact Form | Dc Contact Rating | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E34EB1-53X | Epoxy Coated Zinc Die Cast | Black | Extended | 150°F | 1°F | 1NO | 2.5A @ 250V | 1.9" | €151.38 | |
| E34EB1-51X | Epoxy Coated Zinc Die Cast | Black | Extended | 150°F | 1°F | 1NC | 2.5A @ 250V | 1" | €151.38 | |
| E34EB2-1X | Epoxy Coated Zinc Die Cast | Red | Extended | 150°F | 1°F | 1NO/1NC | 2.5A @ 250V | 2" | €232.84 | |
| E34EB2-51X | Epoxy Coated Zinc Die Cast | Red | Extended | 150°F | 1°F | 1NC | 2.5A @ 250V | 3 1/5" | €151.38 | |
| E34EB1-1X | Epoxy Coated Zinc Die Cast | Black | Extended | 150°F | 1°F | 1NO/1NC | 2.5A @ 250V | 1" | €213.61 | |
| E34EB3-1X | - | - | - | - | - | - | - | - | €232.84 | |
| E34EB2-53X | Epoxy Coated Zinc Die Cast | Red | Extended | 150°F | 1°F | 1NO | 2.5A @ 250V | 2" | €151.38 |
