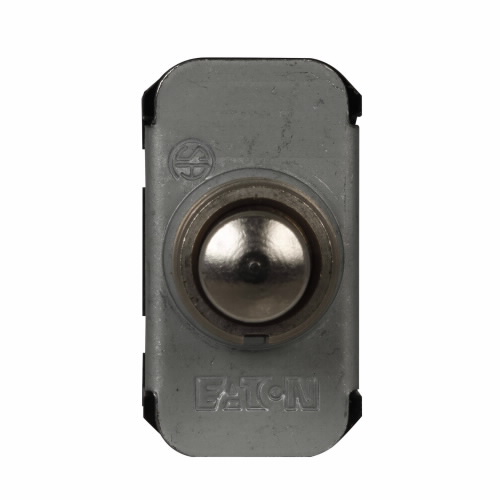

EATON E10P115JS Toggle Switch, SPST Contact, 1P
Get it by Friday, Dec 19
€40.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Toggle Switch |
| Bushing Length | 0.34" |
| Button Extension | 1/4" |
| Height | 1/2" |
| Length | 6" |
| Max. Operating Force | 0.9 lbs. |
| Operating Mode | Momentary |
| Rating | 15A at 125V NO, 10A at 250V NO, 1/3 hp at 125-250V |
| Series | Series E10 |
| Switch Type | Pushbutton Actuator |
| Terminals | Screw |
| Throw Type | Single-throw |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 5" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Terminals | Height | Switch Type | Price | |
|---|---|---|---|---|---|---|
 |
E10E220DS | Screw | 2/5" | Toggle Switch | €20.49 | |
 |
E10E120AL | Solder Lug | 1 1/4" | Toggle Switch | €11.25 | |
|
E10E120AS | Screw | 2.1" | Toggle Switch | €17.66 | |
|
E10E120ES | Screw | 2" | Toggle Switch | €12.32 | |
|
E10E120AP | Spade | 0.3" | Toggle Switch | €17.27 | |
|
E10E120DS | Screw | 0.3" | Toggle Switch | €13.84 | |
 |
E10E220ES | Screw | 2.1" | Toggle Switch | €14.51 |
