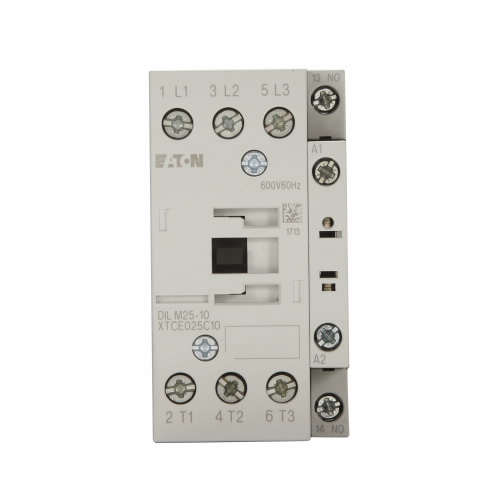

EATON DILM25-21(RDC24) Large Contactor, 25A, 24 Vdc, 2No-1Nc, Frame C, 45 Mm, 3-Pole, Non-Reversing, 11 Kw
Get it by Thursday, Aug 27
€1,009.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Contactor |
| Amps | 25A |
| Coil Voltage | 24V DC |
| Contact Configuration | 2 NO, 1 NC |
| Continuous Amps | 25A |
| Frame Size | 45 mm |
| Length | 1 4/5" |
| Max. Hp | 2, 5/7.5, 10, 15, 20 (1/3 Phase @ 120, 240/208, 240, 480, 600V) |
| No. Of Poles | 3 |
| Notes | Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A) |
| Operation | Non-Reversing |
| Power Consumption | 11 kW |
| Product Height | 3.3" |
| Product Name | Eaton XT IEC Large Contactor |
| Product Width | 5 4/5" |
| Series | Xt Iec |
| Terminals | Screw Terminal |
| Type | Full Voltage Non-reversing Contactor |
Shipping Info:
| Ship weight (kg) | 0.58 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 4.57 |
| Ship width (cm) | 14.73 |
| Country of Origin | US |
Product Variants
| Model | Amps | Coil Voltage | Product Height | Product Width | Max. Hp | Continuous Amps | Operation | Contact Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| DILM25-10(115V60HZ) | 25A | 115V AC | 1.9" | 3 1/2" | 2, 5/7.5, 10, 15, 20 (1/3 Phase @ 120, 240/208, 240, 480, 600V) | 25A | Non-Reversing | 1 NO | - | RFQ
|
| DILM25-10(RDC240) | 25A | 200-240V DC | - | - | 2, 5/7.5, 10, 15, 20 (1/3 Phase @ 120, 240/208, 240, 480, 600V) | 25A | Reversing | 1 NO | €568.11 | |
| DILM32-01(24V60HZ) | 32A | 24V AC | 3.3" | 3 4/5" | 2, 5/ 10, 10, 20, 25 (1/3 Phase @ 120, 240/208, 240, 480, 600V) | 32A | Non-Reversing | 1 NC | €617.55 | |
| DILM25-10(24V60HZ) | 25A | 24V AC | 2" | 4" | 2, 5/7.5, 10, 15, 20 (1/3 Phase @ 120, 240/208, 240, 480, 600V) | 25A | Non-Reversing | 1 NO | €508.87 | |
| DILM32-10(24V60HZ) | 32A | 24V AC | 3.3" | 3 4/5" | 2, 5/ 10, 10, 20, 25 (1/3 Phase @ 120, 240/208, 240, 480, 600V) | 32A | Non-Reversing | 1 NO | €545.59 | |
| DILM25-32(RDC24) | 25A | 24V DC | 3.3" | 5 4/5" | 2, 5/7.5, 10, 15, 20 (1/3 Phase @ 120, 240/208, 240, 480, 600V) | 25A | Non-Reversing | 3 NO, 2 NC | €450.45 | |
| DILM25-10(RDC130) | 25A | 110-130V DC | - | - | 2, 5/7.5, 10, 15, 20 (1/3 Phase @ 120, 240/208, 240, 480, 600V) | 25A | Reversing | 1 NO | €500.95 |
