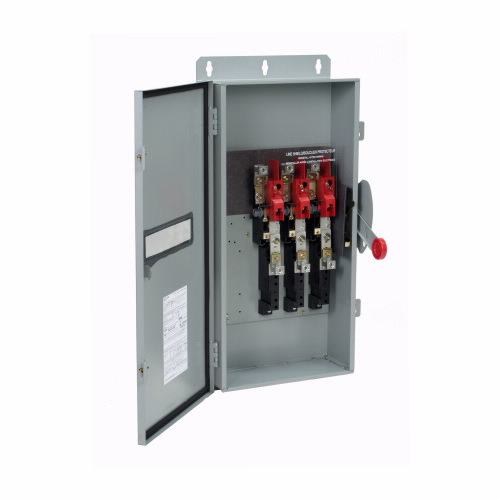

EATON DH324NDKW Fusible Single Throw Safety Switch With Upper Viewing Window, 240 VAC, 200A, 3P
Get it by Tuesday, Dec 23
€6,694.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 200A |
| Enclosure Material | Galvanized Steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible With Neutral |
| Height | 35.38" |
| Length | 11.63" |
| Max. Hp Rating | 15, 25/15, 60/40 Hp (1, 3PH @Std/TD/250V DC) |
| Nema Enclosure Rating | NEMA 12, NEMA 3R |
| Notes | For 2-Pole Applications, Use Outside Poles Of 3-Pole Switch. Can Be Field Modified To Meetnema 3R Rainproof Requirements When A Factory Provided Drain Hole Is Opened. |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Special Features | Upper Viewing Window |
| Type | Heavy Duty Fusible Safety Switch |
| Voltage | 240V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Weight | 61 lbs. |
| Width | 15 1/2" |
Shipping Info:
| Ship weight (kg) | 27.45 |
| Ship height (cm) | 89.87 |
| Ship length (cm) | 29.54 |
| Ship width (cm) | 39.37 |
| Country of Origin | US |
Product Variants
| Product | Model | Nema Enclosure Rating | Number Of Wires | Voltage | Amps | Number Of Poles | Enclosure Material | Protection Method | Environment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DH221FDKW | NEMA 1 | 2 | 240V | 30A | 2 | Steel | - | - | €2,170.35 | |
 |
DH221FWK | NEMA 4X | 2 | 240V | 30A | 2 | Stainless Steel | - | - | €4,132.07 | |
 |
DH221NGK | NEMA 1 | 3 | 240V | 30A | 2 | Steel | - | - | €1,194.96 | |
|
DH221FWKW | NEMA 4X | 3 | 240V | 30A | 2 | Krydon, Non Metallic | - | - | - | RFQ
|
 |
DH221FRK | NEMA 3R | 2 | 240V | 30A | 2 | Galvanized Steel | - | - | €189.78 | |
|
DH221NRK | NEMA 3R | 3 | 240V | 30A | 2 | Galvanized Steel | - | - | €513.38 | |
|
DH221NWK | NEMA 4X | 3 | 240V | 30A | 2 | Stainless Steel | - | - | €4,846.88 |
