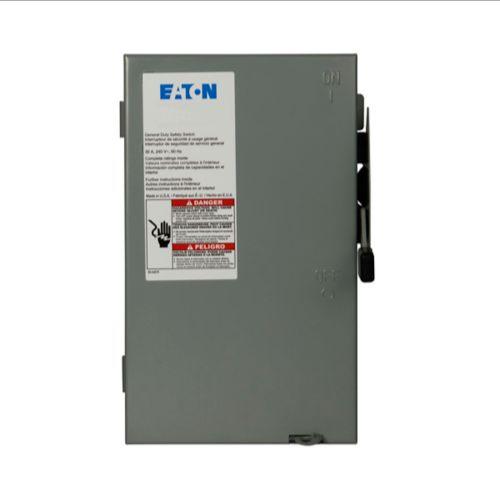

EATON DG321UGB Safety Switch, Non-Fusible, 30 A, Three Phase, 240 VAC, Galvanized Steel, Indoor
Item: BJ2GETModel: DG321UGBCross Ref: 32UJ80
7 In Stock
Ships within 2 days via
10.00% off
€155.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Safety Switch |
| Amps | 30A |
| Contact Form | 3PST |
| Current Rating | 30A |
| Depth | 7" |
| Duty | Standard |
| Enclosure Material | Steel |
| Environment | Indoor |
| Fuse Configuration | Non Fusible |
| Height | 10 3/4" |
| Horsepower @ 240v Ac | 7 1/2 hp |
| Horsepower @ 600v Ac | Not Rated |
| Housing Material | Steel |
| Length | 6 22/25" |
| Nema Enclosure Rating | NEMA 1 |
| Notes | Warning! Switch Is Not Approved For Service Entrance Unless A Neutral Kit Is Installed. |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | Three |
| Protection Method | Non Fusible |
| Standards | Ul 98, Ul Listed |
| Type | Non-fusible, Single-throw |
| Voltage | 240V |
| Voltage Rating | 240V AC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 6 1/2" |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 27.15 |
| Ship length (cm) | 17.48 |
| Ship width (cm) | 16.21 |
| Country of Origin | US |
Product Variants
| Product | Model | Nema Enclosure Rating | Amps | Number Of Poles | Number Of Wires | Enclosure Material | Environment | Voltage | Protection Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DG223UGB | NEMA 1 | 100A | 2 | 2 | Steel | - | 240V | - | €307.39 | |
 |
DG323UGB | NEMA 1 | 100A | 3 | 3 | Steel | - | 240V | - | €782.09 | |
 |
DG223URB | NEMA 3R | 100A | 2 | 2 | Galvanized Steel | - | 240V | - | €494.07 | |
 |
DG323URB | NEMA 3R | 100A | 3 | 3 | Galvanized Steel | Indoor, Outdoor | 240V | Non Fusible | €490.18 | |
|
DG323URB-CSA | NEMA 3R | 100A | 3 | 3 | Galvanized Steel | - | 240V | - | €2,487.58 | |
 |
DG324UGK | NEMA 1 | 200A | 3 | 3 | Steel | - | 240V | - | €983.56 | |
 |
DG224URK | NEMA 3R | 200A | 2 | 2 | Galvanized Steel | - | 240V | - | €3,106.45 | RFQ
|
