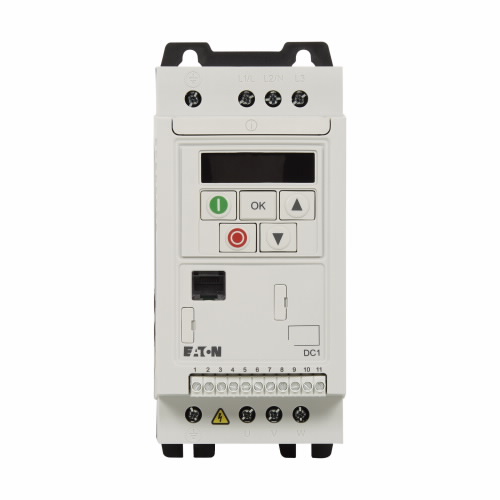

EATON DC1-344D1NN-A20CE1 Variable Frequency Drive, 480 VAC, 2 hp Max Output Power, 4.1 A Max Output Amp.
Item: BJ2EMPModel: DC1-344D1NN-A20CE1Cross Ref: 20RA54
7 In Stock
Ships within 2 days via
10.00% off
€615.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Variable Frequency Drive |
| Adjustable Acceleration Time | 0 sec. to 600 sec. |
| Adjustable Deceleration Time | 0 sec. to 600 sec. |
| Amperage Rating | 4.1A |
| Application | General-Purpose Microdrive, Machinery Oem Drive |
| Brake Chopper Included | No |
| Color | White |
| Control Method | U/F Control, Speed Control, Sensor Less Vector Control |
| Control Type | Keypad |
| Depth | 9" |
| Display Type | 7-Segement |
| Displays | Led Keypad |
| Dynamic Braking | No |
| Enclosure | Open |
| Enclosure Rating | Nema 0 |
| Ethernet Port Included | No |
| Frame Size | FR1 |
| Height | 6 1/4" |
| Input Frequency | 50/60 Hz |
| Input Phase Ac | 3 |
| Input Type | Analog, Digital |
| Input Voltage | 480V AC |
| Input Voltage Range | 380-480V AC |
| Maximum Output Current | 4.1A |
| Maximum Output Power | 2 hp |
| Number Of Inputs | 4 Digital Inputs, 2 Analog Inputs |
| Number Of Outputs | (1) Output-Analog, Digital + (1) Relay Output |
| Output Frequency Range | 0-500 Hz |
| Output Phase Ac | 3 |
| Output Type | Analog, Digital |
| Output Voltage | 480V AC |
| Output Voltage Range | 480V AC |
| Overall Depth | 4 7/8" |
| Overall Height | 7 1/4" |
| Overall Width | 3 1/4" |
| Series | DC1 FAMILY Series |
| Start/stop Control | Programmable |
| Starting Torque | 1.75 |
| Style | Compact |
| Torque @ 1 Hz | 1.75 |
| Torque Application | Constant Torque, Variable Torque |
| Type | VF Drive |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.Plus 5 Years On Capacitor Cells. |
| Width | 5" |
| With Bypass/no Bypass | No Bypass |
| With Line Contactor/no Line Contactor | No Line Contactor |
Shipping Info:
| Ship weight (kg) | 1.31 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Model | Input Voltage | Output Voltage | Overall Width | Overall Depth | Overall Height | Brake Chopper Included | Height | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| DC1-12011NB-A20CE1 | 240V AC | 240V AC | 5 1/2" | 10 1/4" | 9" | Yes | 9" | 10 1/4" | €660.45 | |
| DC1-12015NB-A20CE1 | 240V AC | 240V AC | 6 1/4" | 12 3/4" | 9 3/4" | Yes | - | - | €851.44 | |
| DC1-122D3NN-A20CE1 | 240V AC | 240V AC | 4 3/4" | 6 1/2" | 9 1/4" | Yes | 6 1/2" | 9 1/4" | €351.42 | |
| DC1-124D3NN-A20CE1 | 240V AC | 240V AC | 5" | 9" | 6 1/4" | Yes | 6 1/4" | 9" | €429.13 | |
| DC1-127D0NN-A20CE1 | - | - | - | - | - | - | 6 1/4" | 9" | €535.42 | |
| DC1-127D0NB-A20CE1 | 240V AC | 240V AC | 5 1/2" | 10 1/4" | 9" | Yes | 9" | 10 1/4" | €678.05 | |
| DC1-1D2D3NN-A20CE1 | 115V AC | 230V AC | 3 1/8" | 4 7/8" | 7 1/4" | No | 5" | 9" | €481.74 |
