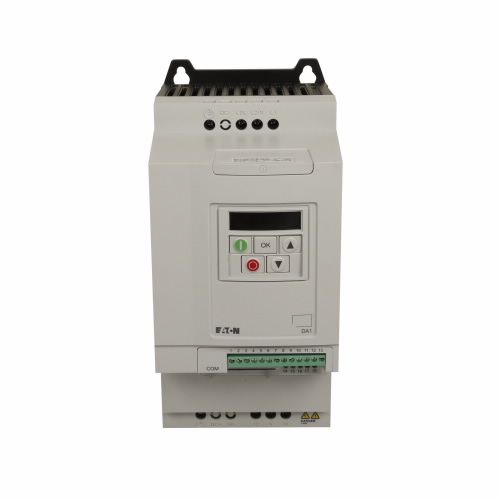

EATON DA1-342D2FB-A20C Adjustable Frequency Drive, 2 Output, 5 Input, 480V, 3 Phase, RS-485, FR2, 2.2A, 1 HP
Item: BJ2DLRModel: DA1-342D2FB-A20CCross Ref: 20RA32
7 In Stock
Ships within 2 days via
10.00% off
€1,177.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Variable Frequency Drive |
| Accepts Input Control Signal | Remote Control |
| Adjustable Acceleration Time | 0 sec. to 600 sec. |
| Adjustable Deceleration Time | 0 sec. to 600 sec. |
| Amperage Rating | 2.2A |
| Application | High-Performance Microdrive, Machinery Oem Drive |
| Brake Chopper | Internal Brake Chopper |
| Brake Chopper Included | Yes |
| Color | White |
| Control Method | Pid Controller, V/Hz, Sensor Less Vector (Slv), Closed-Loop Vector (Clv) Control |
| Control Type | Keypad, Remote |
| Depth | 7 8/25" |
| Display Type | LED |
| Displays | Led Keypad |
| Dynamic Braking | No |
| Enclosure | Open |
| Enclosure Rating | Nema 0 |
| Ethernet Port Included | No |
| Frame Size | FR2 |
| Height | 9.09" |
| Hp | 1 hp |
| Input Frequency | 50/60 Hz |
| Input Phase Ac | 3 |
| Input Type | Analog, Digital |
| Input Voltage | 480V AC |
| Input Voltage Range | 380-480V AC |
| Ip Rating | IP20 |
| Maximum Output Current | 2.2A |
| Maximum Output Power | 1 hp |
| Nema Enclosure Rating | NEMA 0 |
| Notes | 200-240V 3.0 HP 10.5A RFI Conformal Coated See Unit Nameplate For More Detailed Approvals. |
| Number Of Inputs | 5 |
| Number Of Output | 2 |
| Number Of Outputs | (2) Output-Analog, Digital +(2) Relay Output |
| Output Frequency Range | 0-500 Hz |
| Output Phase Ac | 3 |
| Output Type | Analog, Digital |
| Output Voltage | 480V AC |
| Output Voltage Range | 380-480V AC |
| Overall Depth | 7 3/8" |
| Overall Height | 9 1/8" |
| Overall Width | 4 1/4" |
| Phase | 3 |
| Protection | Overload |
| Protection Filtering | Internal RFI Filter |
| Series | DA1 FAMILY Series |
| Start/stop Control | Programmable |
| Starting Torque | 2 |
| Style | Advanced Microdrive |
| Torque @ 1 Hz | 2 |
| Torque Application | Constant Torque, Variable Torque |
| Type | VF Drive |
| User Interface | RS-485 |
| Voltage Rating | 480V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.Plus 5 Years On Capacitor Cells. |
| Width | 4.21" |
| With Bypass/no Bypass | No Bypass |
| With Line Contactor/no Line Contactor | No Line Contactor |
Shipping Info:
| Ship weight (kg) | 1.79 |
| Ship height (cm) | 23.09 |
| Ship length (cm) | 18.59 |
| Ship width (cm) | 10.69 |
| Country of Origin | US |
Product Variants
| Model | Input Voltage | Output Voltage | Height | Depth | Overall Width | Overall Depth | Overall Height | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| DA1-32011FB-A20C | 240V AC | 240V AC | 9.09" | 7 8/25" | 4 1/4" | 7 3/8" | 9 1/8" | 3 hp | €1,770.45 | |
| DA1-32024FB-A20C | 240V AC | 240V AC | 10 3/4" | 8.03" | 5 1/8" | 8 1/8" | 10 3/4" | 7 1/2 hp | €2,699.02 | |
| DA1-32018FB-A20C | 240V AC | 240V AC | 10 3/4" | 8.03" | 5 1/8" | 8 1/8" | 10 3/4" | 5 hp | €3,281.70 | |
| DA1-324D3FB-A20C | 240V AC | 240V AC | 9.09" | 7 8/25" | 4 1/4" | 7 3/8" | 9 1/8" | 1 hp | €1,283.52 | |
| DA1-34018FB-A20C | 480V AC | 480V AC | 10 3/4" | 8.03" | 5 1/8" | 8 1/8" | 10 3/4" | 10 hp | €3,695.56 | |
| DA1-34014FB-A20C | 480V AC | 480V AC | 10 3/4" | 8.03" | 5 1/8" | 8 1/8" | 10 3/4" | 7 1/2 hp | €3,112.33 | |
| DA1-327D0FB-A20C | 240V AC | 240V AC | 9.09" | 7 8/25" | 4 1/4" | 7 3/8" | 9 1/8" | 2 hp | €1,427.81 |
