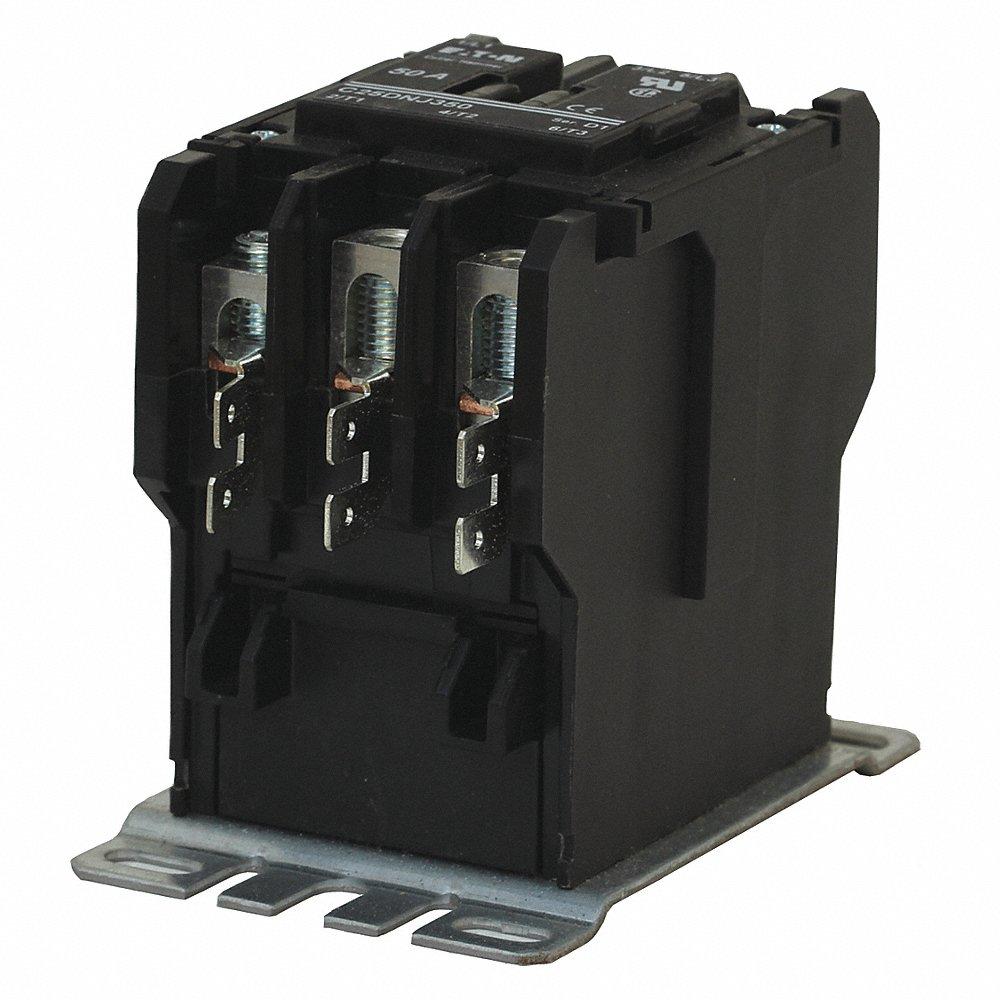

EATON C25DNJ350T Definite Purpose Magnetic Contactor, 3 Poles, 24 VAC, 50 A, Non-Reversing
Item: CH9ZFHModel: C25DNJ350TCross Ref: 49C087
7 In Stock
Ships within 2 days via
5.00% off
€438.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Definite Purpose Contactor |
| Auxiliary Contact Module Capacity | 4 |
| Coil Voltage | 24V AC |
| Contactor Frame Size | Compact |
| Depth | 3 3/4" |
| Enclosure Nema Rating | No Enclosure |
| Enclosure Type | Open |
| Fluorescent Lighting Amps Rating | Not Applicable |
| Frame Size | D |
| Frequency | 50/60 Hz |
| Full Load Amps-resistive | 65A |
| Full Load Inductive Amps | 50A |
| Height | 3 3/4" |
| Hp @ 1 Ph | 10 hp |
| Hp @ 1 Ph-240v | 10 hp |
| Hp @ 1 Phase-120v | 3 hp |
| Hp @ 1 Phase-240v | 10 hp |
| Hp @ 3 Phase-208v | 15 hp |
| Hp @ 3 Phase-240v | 15 hp |
| Hp @ 3 Phase-480v | 30 hp |
| Hp @ 3 Phase-575v | 30 hp |
| Hp @ 3 Phase-600v | 30 hp |
| Included | Mounting Plate |
| Inductive Full Load Amps | 50A |
| Led Lighting Amps Rating | 65A |
| Main Pole Contact Form | 3NO |
| Max. Operating Temp. | 158°F |
| Max. Voltage | 690V AC |
| Min. Operating Temp. | -13°F |
| Mounting Hole Dia. | 6/25" |
| Mounting Hole Distance | 3 1/4" |
| Mounting Hole Distance Width | 1 3/4" |
| Mounting Hole Distance-height | 3.25" |
| Mounting Hole Width | 1 3/4" |
| Mounting Postion | Horizontal, Vertical |
| Nema Enclosure Material | Not Applicable |
| No. Of Poles | 3 |
| No. Of Terminals | 2 |
| Nominal Coil Voltage @ 60hz | 24V AC |
| Overall Depth | 3.35" |
| Overall Height | 3 3/4" |
| Overall Width | 2 2/5" |
| Phase | 3 |
| Resistive Full Load Amps | 65A |
| Reversible | No |
| Reversing Capability | Non Reversing |
| Series | C25 Series |
| Terminal Connection Type | Box Lugs, Quick-Disconnect Terminals |
| Tungsten Lighting Amps Rating | Not Applicable |
| Width | 2 2/5" |
| Wire Termination Type | Box Lug, Quick Disconnect |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 8.51 |
| Ship width (cm) | 6.1 |
| Country of Origin | CN |
Product Variants
| Model | Coil Voltage | No. Of Poles | Amps | Product Height | Product Width | Full Load Amps-resistive | Hp @ 1 Phase-120v | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C25ANB125A | 110-120V AC | 1 | 25A | 3.19" | 1.97" | 35A | 2 hp | 1 | €100.08 | |
| C25ANB125B | 208-240V AC | 1 | 25A | 3.19" | 1.97" | 35A | 2 hp | 1 | €100.08 | |
| C25ANB125T | 24V AC | 1 | 25A | 3.19" | 1.97" | 35A | 2 hp | 1 | €100.08 | |
| C25ANB130A | 110-120V AC | 1 | 30A | 3.19" | 1.97" | 40A | 2 hp | 1 | €117.34 | |
| C25ANB140B | 208-240V AC | 1 | 40A | 3.19" | 1.97" | 50A | 3 hp | 1 | €117.34 | |
| C25ANB130B | 208-240V AC | 1 | 30A | 3.19" | 1.97" | 40A | 2 hp | 1 | €117.34 | |
| C25ANB140A | 110-120V AC | 1 | 40A | 3.19" | 1.97" | 50A | 3 hp | 1 | €117.34 |
