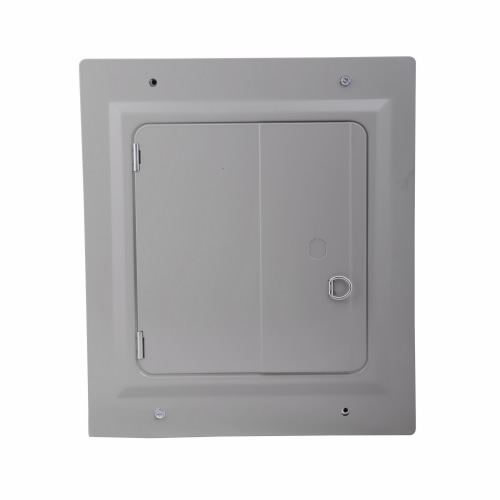

EATON BR612L125FDGP Main Lug Load Center, 1 Phase Split, 120/240 VAC, 125A, 12P, 10 kA Interrupt
€101.30 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Amps | 125A |
| Box Size | 7 |
| Bus Material | Aluminum |
| Cover | Cover Included |
| Enclosure Material | Metallic |
| Height | 13" |
| Interrupt Rating | 10 kAIC |
| Length | 3 14/25" |
| Main Circuit Breaker | BR |
| Mounting | Flush |
| Nema Enclosure Rating | NEMA 1 |
| No. Of Circuits | 12 |
| No. Of Spaces | 6 |
| No. Of Wires | 3 |
| Notes | GBK5 And GBK520 Ground Bars |
| Phase | 1 |
| Type | Main Lug |
| Used With | Type Br 1-Inch Breakers |
| Voltage | 120/240V |
| Width | 11" |
| Wire Size | #14 AWG to 1 AWG |
Shipping Info:
| Ship weight (kg) | 4.19 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 9.04 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Amps | Phase | Bus Material | No. Of Spaces | No. Of Circuits | Nema Enclosure Rating | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2100RNM-A2 | 8 1/2" | 100A | 1 | Aluminum | 4 | 2 | - | #14 AWG to 2 AWG | €108.56 | |
 |
2460FNM | 10" | 60A | 1 | Aluminum | 4 | 2 | NEMA 1 | #14 AWG to 2 AWG | €234.04 | |
 |
2460SGNM | 4 3/4" | 60A | 1 | Aluminum | 2 | 4 | NEMA 1 | #14 AWG to 2 AWG | €56.21 | |
|
2460SNM | 4 3/4" | 60A | 1 | Aluminum | 2 | 4 | NEMA 1 | #14 AWG to 2 AWG | €220.84 | |
 |
34242DYSN | 54" | 400A | 3 | Aluminum | 42 | 42 | NEMA 1 | 750,400 kcmil | €9,224.27 | |
|
34242EFN | 54" | 600A | 3 | Aluminum | 42 | 42 | NEMA 1 | #2 AWG to 500 kcmil | €10,092.94 | |
 |
3BR1224L125 | 21" | 125A | 3 | Aluminum | 12 | 24 | NEMA 1 | #6 AWG to 2/0 AWG | €190.89 |
